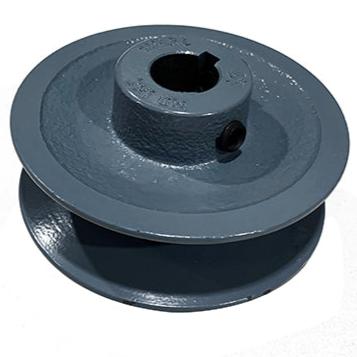

1VP60-1-1/8,Masterdrive,Dia 6.00'',Bore 1-1/8'',Variable Pitch Adjustable,

1VP60-1-1/8,Masterdrive,Dia 6.00'',Bore 1-1/8'',Variable Pitch Adjustable,

E-Motor Nations

  • $74.00


1VP60X1-1/8,Masterdrive, Dia 6.00'', Bore 1-1/8'', Variable Pitch Adjustable,1 Groove,

SPECIFICATIONS

FINISHED BORE 1.1250 in
INCH/METRIC Inch
A (4L) PITCH DIA. [MAX] 5.20 in
SHEAVE TYPE VP
SHEAVE CONSTRUCTION B
NO. OF GROOVES 1
B (5L) PITCH DIA. [MAX] 5.6 in
MATERIAL Cast Iron
BORE TYPE Finished
HUB O.D. 2 1/2 in
A (4L) PITCH DIA. [MIN] 4.20 in
KEYWAY SIZE 3/16 x 3/32 in
LENGTH THROUGH BORE 2.218 in
B (5L) PITCH DIA. [MIN] 4.4 in
KEYWAY 3/16 x 3/32
SET SCREW SIZE 5/16-18
BELT SIZE 3L / A or 4L / B or 5L
OUTSIDE DIA. 6 in
WEIGHT 6.95 LB

DESCRIPTION

  • All fitted with hollow head setscrews. Any standard one groove O, A, B or 5V Browning sheave can be used as a companion sheave.

APPLICATIONS

  • Conveyors
  • Pumps
  • Fans
  • Mixers
  • Ventilators

FEATURES

  • Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
