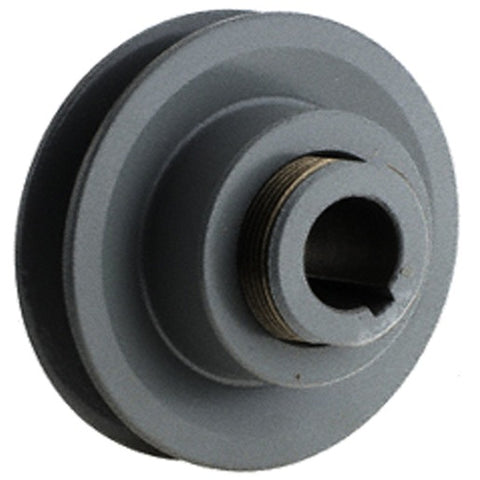

1VP50-5/8, Masterdrive,1VP SERIES SINGLE GROOVE,Variable pitch sheave,

E-Motor Nations

$51.00

1VP50-5/8, Pulley, 8550 Maska,

SPECIFICATIONS

OUTSIDE DIA.	4.75 in
A (4L) PITCH DIA. [MIN]	3 1/2 in
INCH/METRIC	Inch
3L PITCH [MIN]	3.400 in
FINISHED BORE	5/8 in
NO. OF GROOVES	1
BELT SIZE	3L / A or 4L / B or 5L
MATERIAL	Cast Iron
SHEAVE CONSTRUCTION	A or B
BORE TYPE	Finished
KEYWAY	3/16 x 3/32

HUB O.D.	2 1/2 in
KEYWAY SIZE	3/16 x 3/32 in
SHEAVE TYPE	VP
B (5L) PITCH DIA. [MIN]	3.6 in
3L PITCH [MAX]	4.200 in
SET SCREW SIZE	5/16-18
B (5L) PITCH DIA. [MAX]	4.6 in
A (4L) PITCH DIA. [MAX]	4 1/2 in
WEIGHT	2.65 LB
