1VP50-1-1/8,Masterdrive,1VP SERIES SINGLE GROOVE,Variable pitch sheave,

E-Motor Nations

  • $51.00

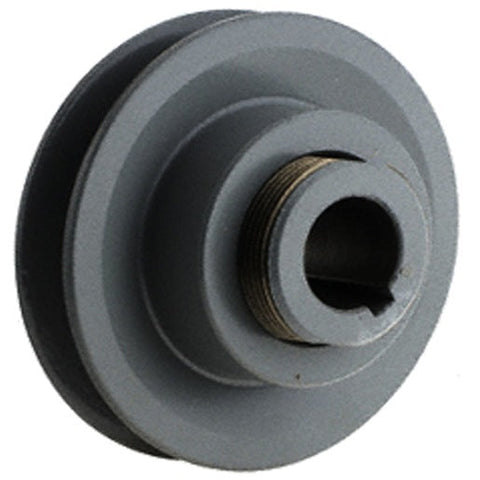

1VP50-1-1/8, Pulley, 8550 Maska,

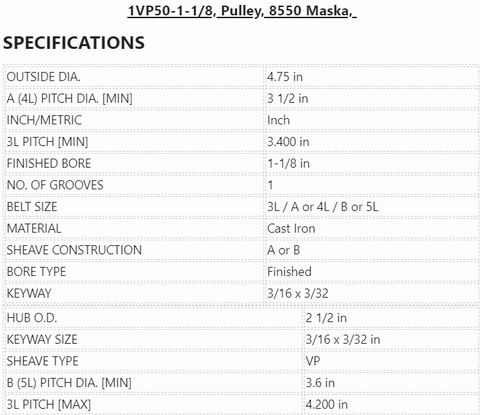

SPECIFICATIONS

OUTSIDE DIA. 4.75 in
A (4L) PITCH DIA. [MIN] 3 1/2 in
INCH/METRIC Inch
3L PITCH [MIN] 3.400 in
FINISHED BORE 1-1/8 in
NO. OF GROOVES 1
BELT SIZE 3L / A or 4L / B or 5L
MATERIAL Cast Iron
SHEAVE CONSTRUCTION A or B
BORE TYPE Finished
KEYWAY 3/16 x 3/32
HUB O.D. 2 1/2 in
KEYWAY SIZE 3/16 x 3/32 in
SHEAVE TYPE VP
B (5L) PITCH DIA. [MIN] 3.6 in
3L PITCH [MAX] 4.200 in
SET SCREW SIZE 5/16-18
B (5L) PITCH DIA. [MAX] 4.6 in
A (4L) PITCH DIA. [MAX] 4 1/2 in
WEIGHT 2.65 LB
