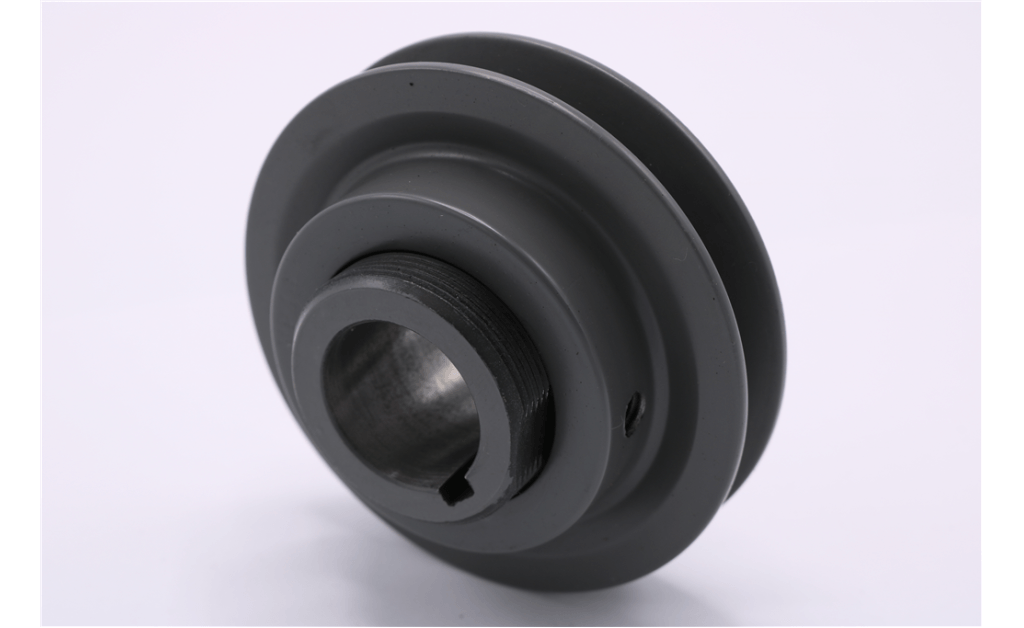

1VP40-1-1/8'',Masterdrive,Dia 3.75'',Bore 1-1/8'',Variable Pitch Adjustable,

E-Motor Nations

$44.22

1VP40X1-1/8'', Masterdrive, Diameter 3.75'',Bore Size 1-1/8'',Maska 8400,

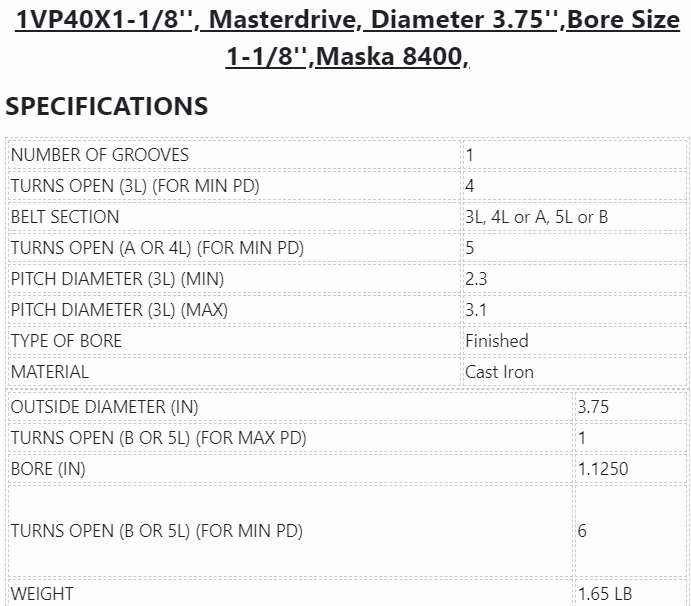

SPECIFICATIONS

NUMBER OF GROOVES	1
TURNS OPEN (3L) (FOR MIN PD)	4
BELT SECTION	3L, 4L or A, 5L or B
TURNS OPEN (A OR 4L) (FOR MIN PD)	5
PITCH DIAMETER (3L) (MIN)	2.3
PITCH DIAMETER (3L) (MAX)	3.1
TYPE OF BORE	Finished
MATERIAL	Cast Iron

OUTSIDE DIAMETER (IN)	3.75
TURNS OPEN (B OR 5L) (FOR MAX PD)	1
BORE (IN)	1.1250
TURNS OPEN (B OR 5L) (FOR MIN PD)	6
WEIGHT	1.65 LB

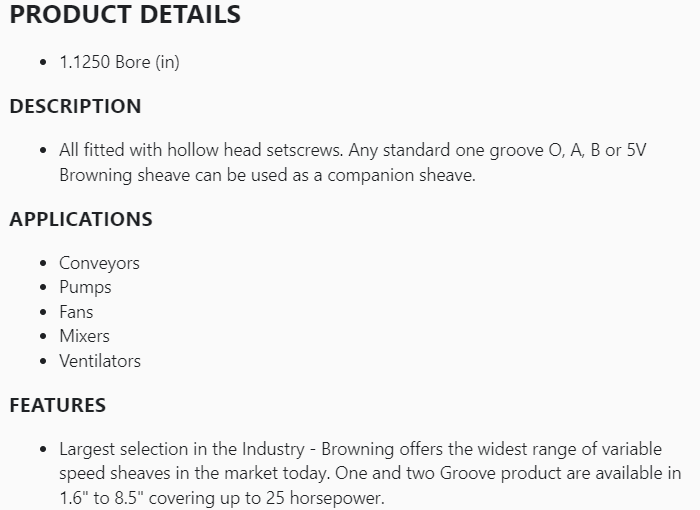

PRODUCT DETAILS

1.1250 Bore (in)

DESCRIPTION

All fitted with hollow head setscrews. Any standard one groove O, A, B or 5V Browning sheave can be used as a companion sheave.

APPLICATIONS

Conveyors
Pumps
Fans
Mixers
Ventilators

FEATURES

Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6" to 8.5" covering up to 25 horsepower.
