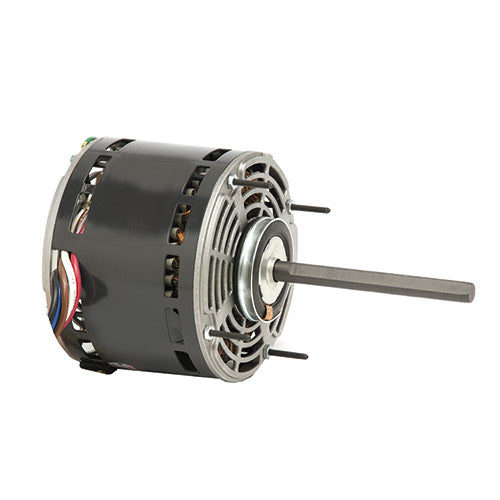

1972, Us Motors, 1/3hp, 1075/3spd, 208-230V, fr:48,odp, K055WML1257012B, EM3586

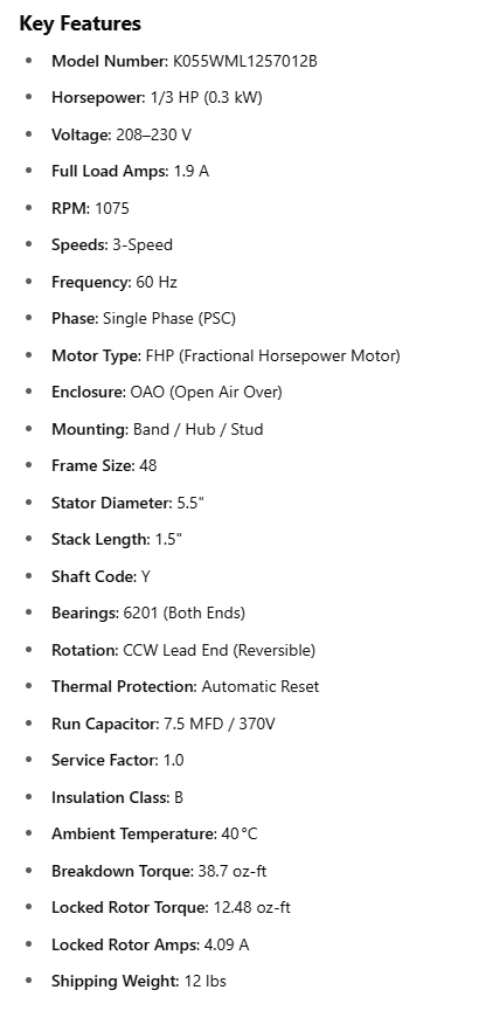

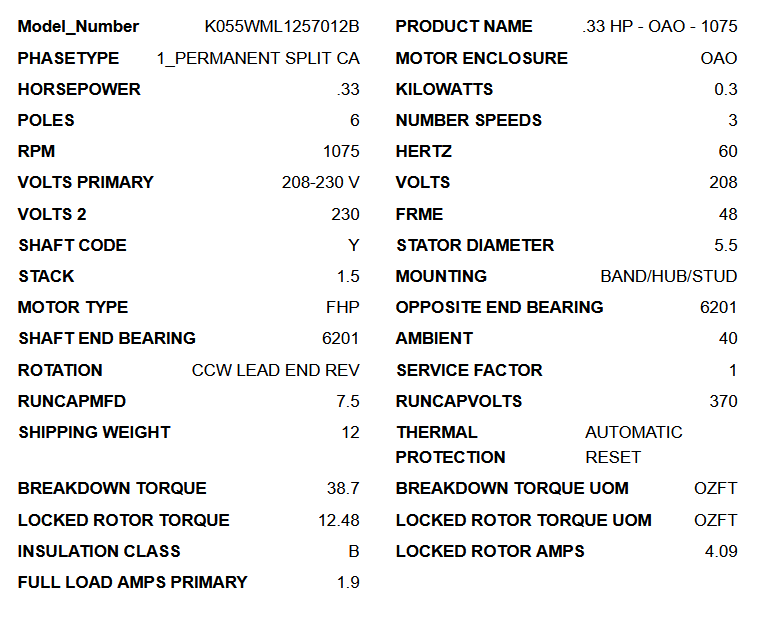

Key Features

• Model Number: K055WML1257012B

• Horsepower: 1/3 HP (0.3 kW)

• Voltage: 208–230 V

• Full Load Amps: 1.9 A

• RPM: 1075

• Speeds: 3-Speed

• Frequency: 60 Hz

• Phase: Single Phase (PSC)

• Motor Type: FHP (Fractional Horsepower Motor)

• Enclosure: OAO (Open Air Over)

• Mounting: Band / Hub / Stud

• Frame Size: 48

• Stator Diameter: 5.5"

• Stack Length: 1.5"

• Shaft Code: Y

• Bearings: 6201 (Both Ends)

• Rotation: CCW Lead End (Reversible)

• Thermal Protection: Automatic Reset

• Run Capacitor: 7.5 MFD / 370V

• Service Factor: 1.0

• Insulation Class: B

• Ambient Temperature: 40 °C

• Breakdown Torque: 38.7 oz-ft

• Locked Rotor Torque: 12.48 oz-ft

• Locked Rotor Amps: 4.09 A

• Shipping Weight: 12 lbs

Cross Reference Compatibility

This motor is a direct replacement or compatible with the following part numbers:

• Century: D1036, FD6000A

• Packard: 43586, 63986, 53586

• A1: F2797

• Ajax: PSC13-230

• Allied: 2870375

• AMEC: YDK140-245-6A2

• AO Smith: 323P706

• Beacon C: 2BM136B

• Carrier: P257-8986

• EC Max: 46013

• Economaster: EM3586

• Embraco: E204

• Emerson:

  • KA55HXFCL-1240, KA55HXSNC-2350, KA55FCL-1240

  • K55DYS-1328, K55EBR-7191, K55RMD-5628

  • K1972, K55HXJMZ-9219, K55HXDYS-1328

  • K55LYS-0308, K55LCE-3608, KA55SNC-2350

  • K55JMD-2951

• Fasco: D-723

• FR: F097

• General Electric:

  • 5KCP39HGA555, 5KCP39KG1212, 3986

  • 5KCP39JGM440, 5KCP39FGN559, 5KCP39GGAB97

  • 5KCP39KGD987, 5KCP39HGB422, 5KCP39KGE660

  • 5KCP39KGE183, 5KCP39KGB277, 3916

• Genteq: 6005, 3586

• Global Industrial: WBB467977

• Grainger/Dayton: 6M093, 4M188

• ICP: 1081398, 1054629, 1149206

• IRP: 160-39

• Johnstone: S87-979

• JS: S88-547

• Lennox: 13H3701, 18K7401C, 18K7401, 20P0301, R4741-001C

• MARS: 3586, MRCD923

• Motion: 2897780

• Nordyne: 01-0174, 917298

• Rheem: 51-23022-41, 51-21796-01, 51-23023-31

• Rotom: R43586, DD-3586

• SH: A1-29

• Smart: SE3467

• Smith: FD1036

• TopTech: TT-E33-3SP2

• Totaline: P257-8986

• TradePro: TP-E33-3SP2

• Trane: MOT10345, M0T-7968

• Universal: U-529

• UPG: FHM3586, 024-25106-001, 158508

• Wagner: WG840586
