E-Motor Nations  |  SKU: EMN-017365

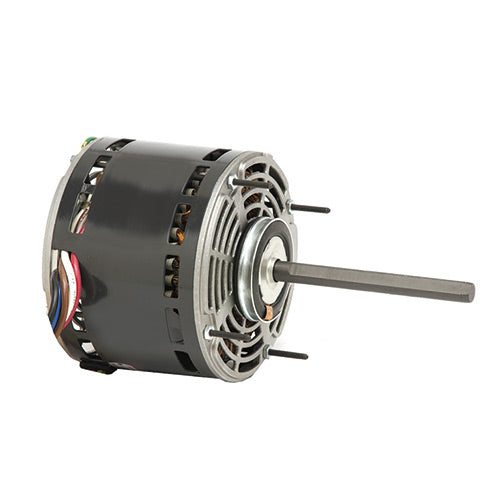

1971,Us Motors, 1/4hp, 1075/3spd, 230V, fr:48,odp, K055WMH1251012B, EM3584,

$195.88
shipping

Estimate shipping

Description
1971,Us Motors,K055WMH1251012B,EM3584,SS3584. OMNIDRIVE, ECONOMASTER EM3584, REPLACE Rotom DD-3584, A.O. Smith D1026, Diversitech WG840584, Emerson 1971, Fasco D725, Embraco E202, GE 3584, Marathon X001, Universal Electric 530 Rotom R43584. EM3584 ECONOMASTER,
**(7126-5011, 1084927 keeprite, , R2814,*1/6 HP)

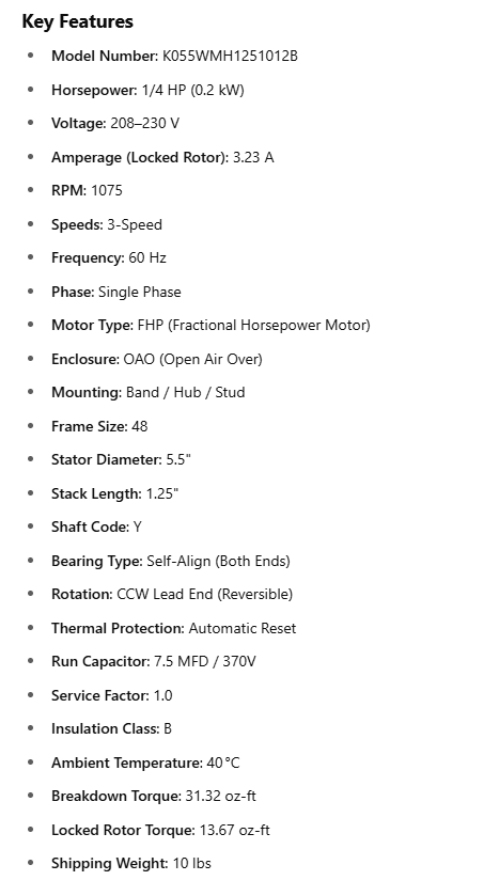

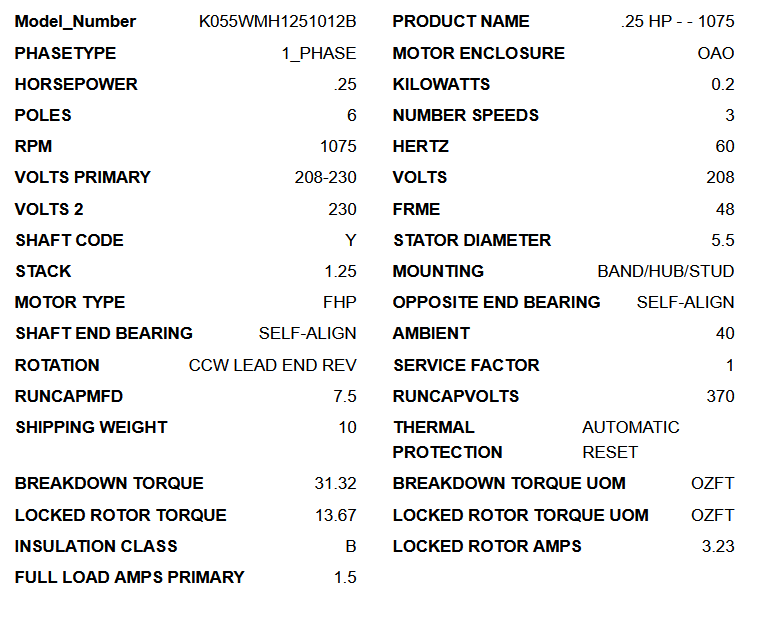

Key Features

  • Model Number: K055WMH1251012B

  • Horsepower: 1/4 HP (0.2 kW)

  • Voltage: 208–230 V

  • Amperage (Locked Rotor): 3.23 A

  • RPM: 1075

  • Speeds: 3-Speed

  • Frequency: 60 Hz

  • Phase: Single Phase

  • Motor Type: FHP (Fractional Horsepower Motor)

  • Enclosure: OAO (Open Air Over)

  • Mounting: Band / Hub / Stud

  • Frame Size: 48

  • Stator Diameter: 5.5"

  • Stack Length: 1.25"

  • Shaft Code: Y

  • Bearing Type: Self-Align (Both Ends)

  • Rotation: CCW Lead End (Reversible)

  • Thermal Protection: Automatic Reset

  • Run Capacitor: 7.5 MFD / 370V

  • Service Factor: 1.0

  • Insulation Class: B

  • Ambient Temperature: 40 °C

  • Breakdown Torque: 31.32 oz-ft

  • Locked Rotor Torque: 13.67 oz-ft

  • Shipping Weight: 10 lbs
