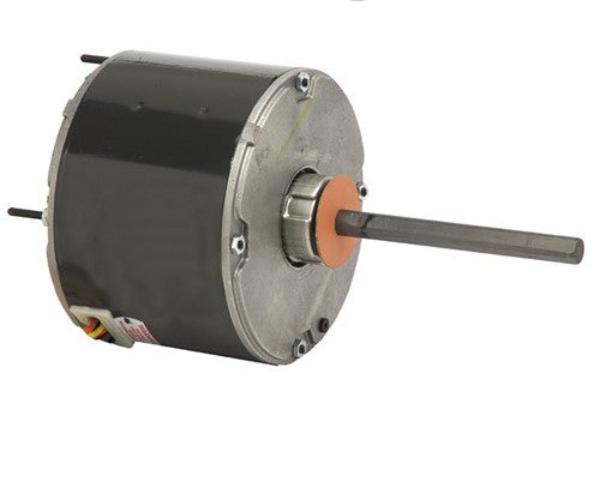

1880, US Motors, 1/4Hp, 825 Rpm, 208-230/460Volts, Frame:48Y,Enc:TEAO,
1880, Us Motors, K055TEC8578012B

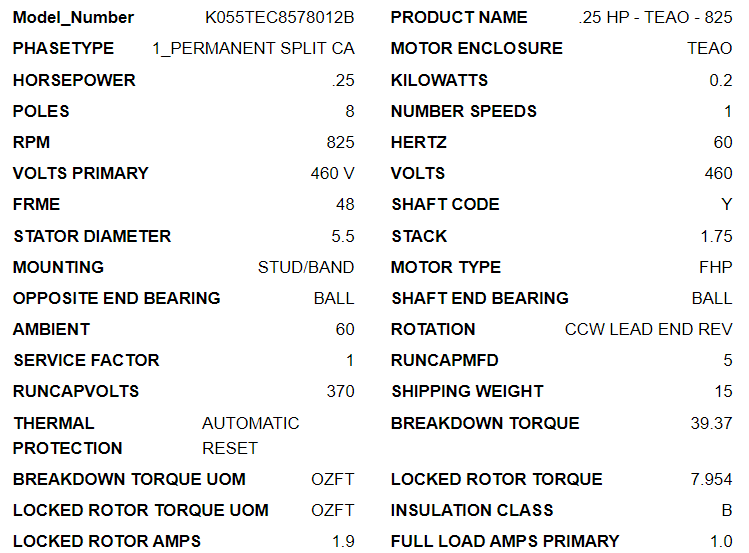

| Specifications | Details |
|---|---|
| Model Number | K055TEC8578012B |
| Product Name | .25 HP - TEAO - 825 |
| Phase Type | 1 - Permanent Split CA |
| Motor Enclosure | TEAO |
| Horsepower | .25 |
| Kilowatts | 0.2 |
| Poles | 8 |
| Number of Speeds | 1 |
| RPM | 825 |
| Hertz | 60 |
| Volts Primary | 460 V |
| Volts | 460 |
| Frame | 48 |
| Shaft Code | Y |
| Stator Diameter | 5.5 |
| Stack | 1.75 |
| Mounting | Stud/Band |
| Motor Type | FHP |
| Opposite End Bearing | Ball |
| Shaft End Bearing | Ball |
| Ambient | 60°C |
| Rotation | CCW Lead End Rev |
| Service Factor | 1 |
| Run Capacitor (MFD) | 5 |
| Run Capacitor Voltage | 370 |
| Shipping Weight | 15 lbs |
| Thermal Protection | Automatic Reset |
| Breakdown Torque | 39.37 oz-ft |
| Locked Rotor Torque | 7.954 oz-ft |
| Insulation Class | B |
| Locked Rotor Amps | 1.9 |
| Full Load Amps Primary | 1.0 |
