E-Motor Nations  |  SKU: EMN-017366

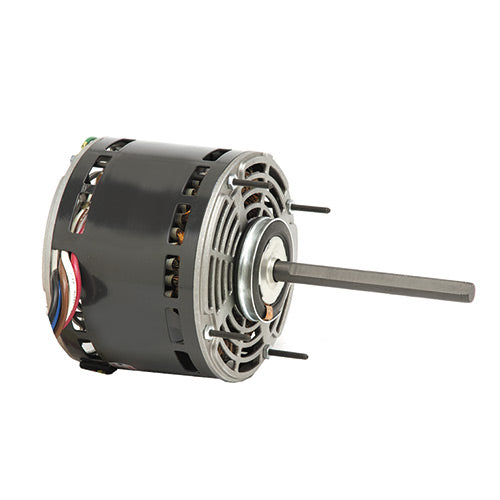

1864,Us Motors, 1/3Hp,1075 Rpm,115V,Fr:48,Odp,K055WMG1245012B,EM3585,

$239.00
shipping

Estimate shipping

Description

1864,Us Motors, Nidec, K055WMG1245012B,EM3585,Century,Replaces A.O. Smith DL1036, Diversitech WG480585, Diversitech 1864, Fasco D727, Embraco E203, GE3585, Marathon X0023, ECONOMASTER EM3585, Rotom, DD-3585, Universal Electric 532, Rotom R43585

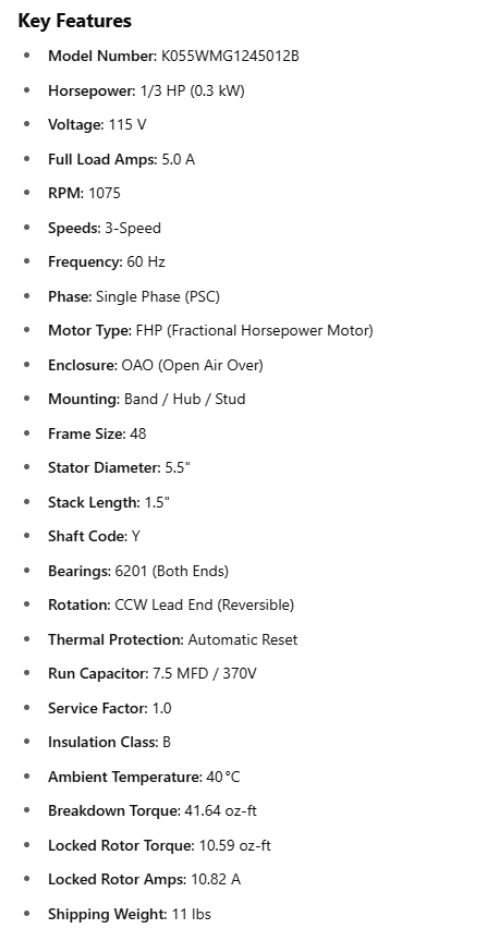

Key Features

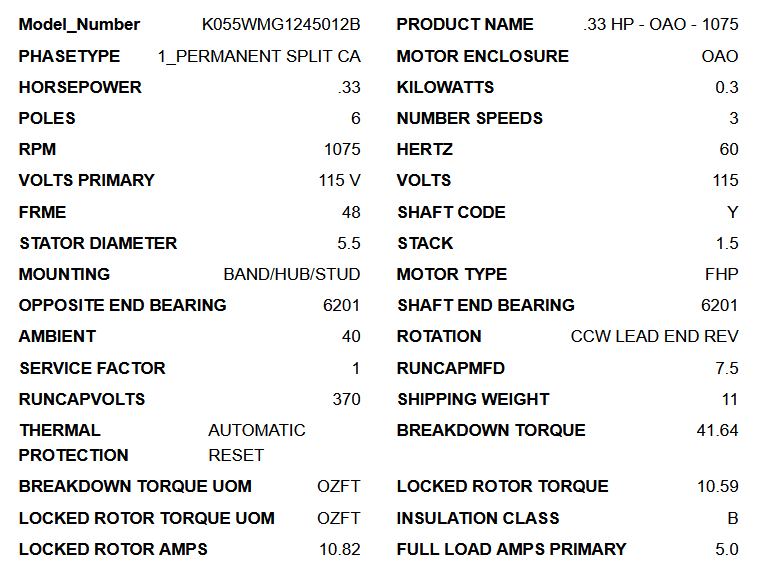

  • Model Number: K055WMG1245012B

  • Horsepower: 1/3 HP (0.3 kW)

  • Voltage: 115 V

  • Full Load Amps: 5.0 A

  • RPM: 1075

  • Speeds: 3-Speed

  • Frequency: 60 Hz

  • Phase: Single Phase (PSC)

  • Motor Type: FHP (Fractional Horsepower Motor)

  • Enclosure: OAO (Open Air Over)

  • Mounting: Band / Hub / Stud

  • Frame Size: 48

  • Stator Diameter: 5.5"

  • Stack Length: 1.5"

  • Shaft Code: Y

  • Bearings: 6201 (Both Ends)

  • Rotation: CCW Lead End (Reversible)

  • Thermal Protection: Automatic Reset

  • Run Capacitor: 7.5 MFD / 370V

  • Service Factor: 1.0

  • Insulation Class: B

  • Ambient Temperature: 40 °C

  • Breakdown Torque: 41.64 oz-ft

  • Locked Rotor Torque: 10.59 oz-ft

  • Locked Rotor Amps: 10.82 A

  • Shipping Weight: 11 lbs
