176,Century,1/4Hp,1075 rpm, 230V,1Ph, F48K92A01,Fr:48,FSE1026SF,FSE1026SV1,

E-Motor Nations

$235.30

176, Century, F48K92A01,Fr:48,FSE1026SF,FSE1026SV1,

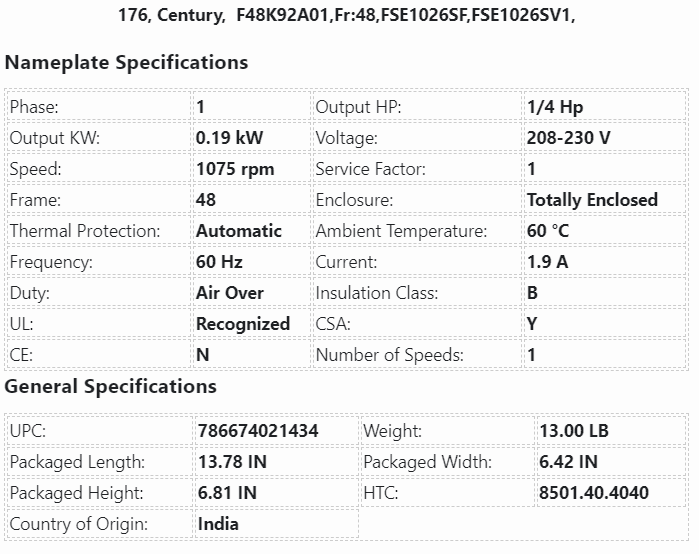

Nameplate Specifications

Phase:	1	Output HP:	1/4 Hp
Output KW:	0.19 kW	Voltage:	208-230 V
Speed:	1075 rpm	Service Factor:	1
Frame:	48	Enclosure:	Totally Enclosed
Thermal Protection:	Automatic	Ambient Temperature:	60 °C
Frequency:	60 Hz	Current:	1.9 A
Duty:	Air Over	Insulation Class:	B
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	1

General Specifications

UPC:	786674021434	Weight:	13.00 LB
Packaged Length:	13.78 IN	Packaged Width:	6.42 IN
Packaged Height:	6.81 IN	HTC:	8501.40.4040
Country of Origin:	India

Condenser Fan - Heat Pump - Refrigeration Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2" Diameter Shaft with Double Flat
36" Leads
Extended Studs Shaft End and Lead End
