E-Motor Nations | SKU:
EMN-018287

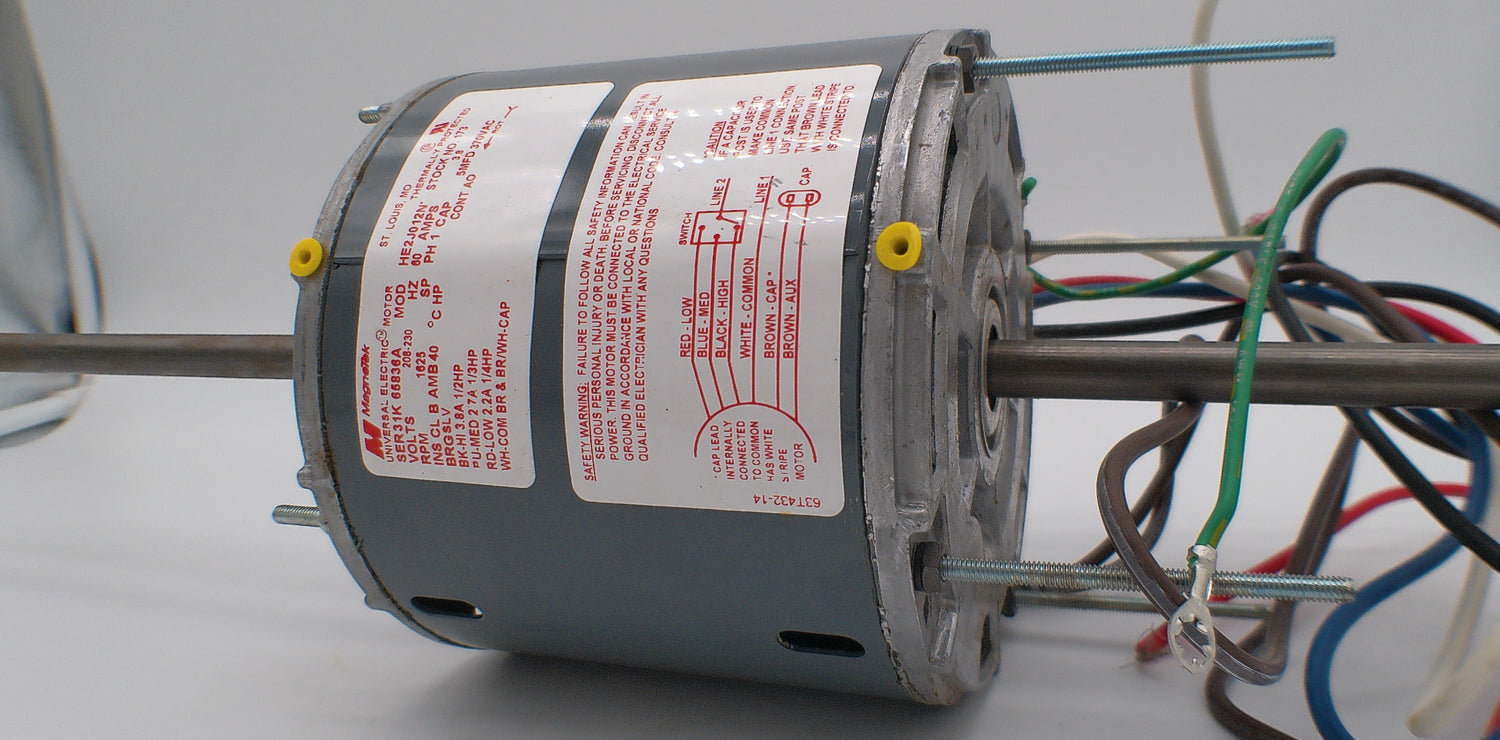

173, HE2J012N, Magnetek, 1/2Hp, 1625 Rpm, 208-230 Volts, Semi Enclosed,
Regular price
$259.95
Unit price
/
Unavailable
173, HE2J012N, Magnetek, 1/2Hp, 1625 Rpm, 208-230 Volts, Semi Enclosed, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
173, HE2J012N, Magnetek, 1/2Hp, 1625 Rpm, 208-230 Volts, Semi Enclo...
Regular price
$259.95
Unit price
/
Unavailable
Description
Description
173, HE2J012N, Magnetek, RA1054, NA1054,K055RLD2210011B,

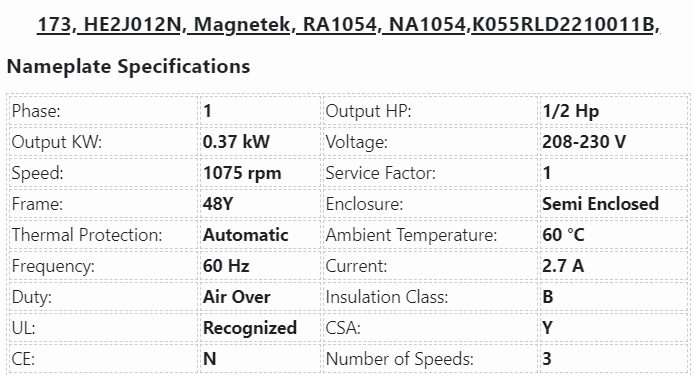

Nameplate Specifications
| Phase: | 1 | Output HP: | 1/2 Hp |
| Output KW: | 0.37 kW | Voltage: | 208-230 V |
| Speed: | 1075 rpm | Service Factor: | 1 |
| Frame: | 48Y | Enclosure: | Semi Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 60 °C |
| Frequency: | 60 Hz | Current: | 2.7 A |
| Duty: | Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 3 |

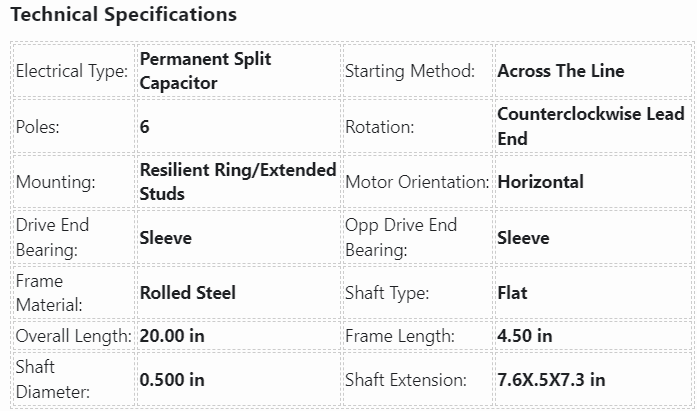

Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Counterclockwise Lead End |
| Mounting: | Resilient Ring/Extended Studs | Motor Orientation: | Horizontal |
| Drive End Bearing: | Sleeve | Opp Drive End Bearing: | Sleeve |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 20.00 in | Frame Length: | 4.50 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 7.6X.5X7.3 in |

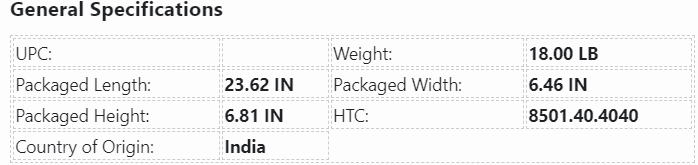

General Specifications
| UPC: | Weight: | 18.00 LB | |
| Packaged Length: | 23.62 IN | Packaged Width: | 6.46 IN |
| Packaged Height: | 6.81 IN | HTC: | 8501.40.4040 |
| Country of Origin: | India |
