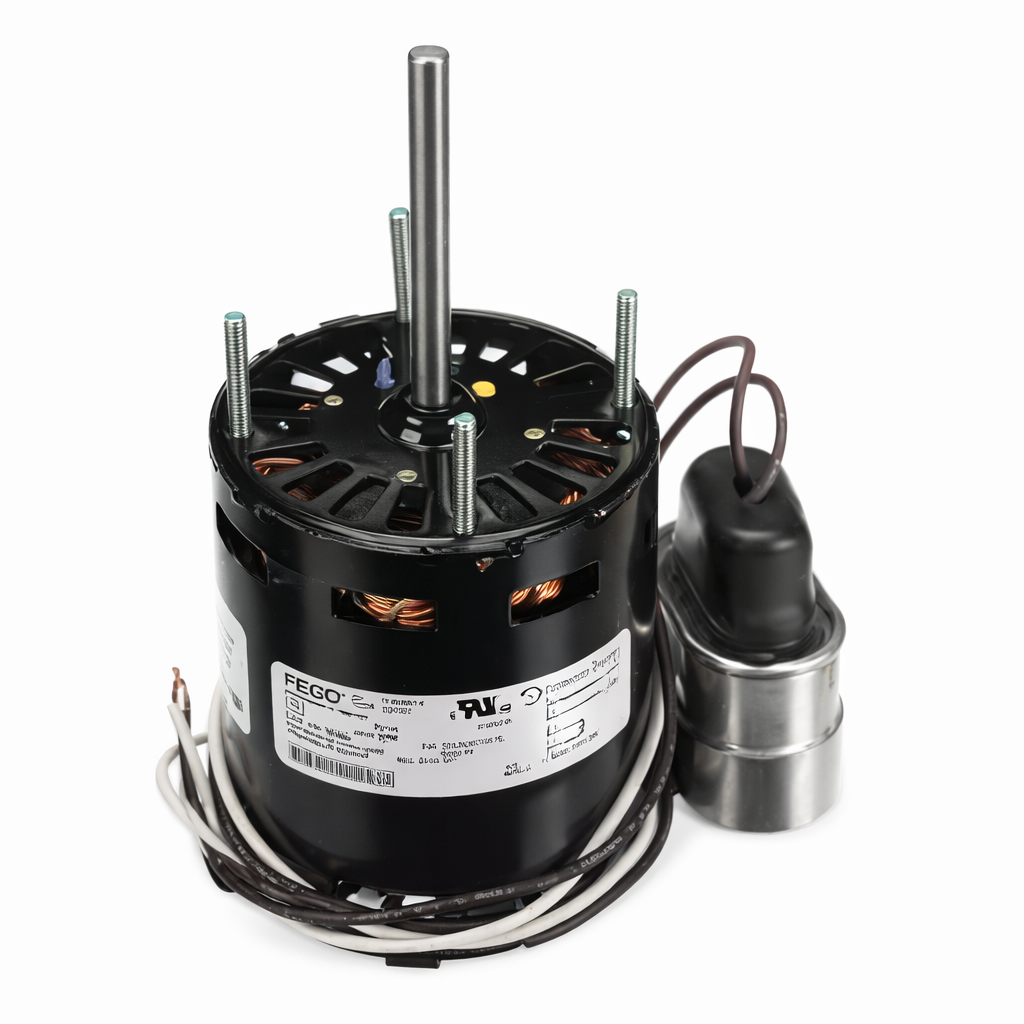

163891, Motor with Capacitor, 1/10Hp, 3000RPM, 115V, 1Ph, 60Hz, CW, 71626474, 131410

163891, Motor with Capacitor, 1/10Hp, 3000RPM, 115V, 1Ph, 60Hz, CW, 71626474, 131410

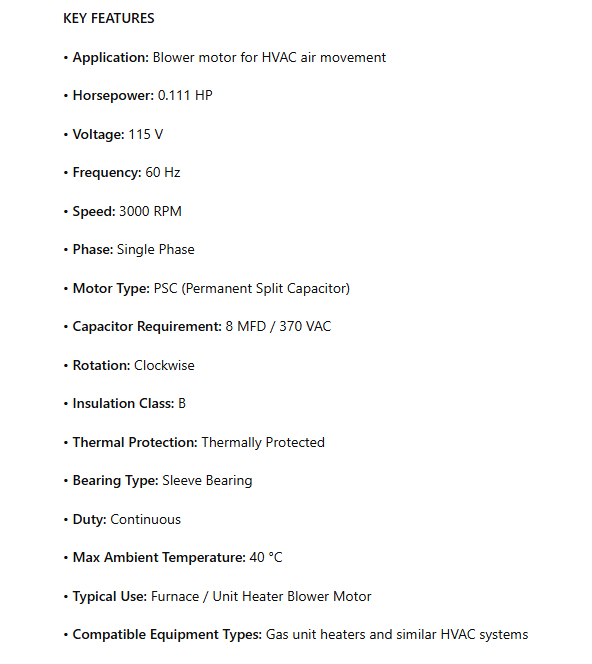

KEY FEATURES

• Application: Blower motor for HVAC air movement

• Horsepower: 0.111 HP

• Voltage: 115 V

• Frequency: 60 Hz

• Speed: 3000 RPM

• Phase: Single Phase

• Motor Type: PSC (Permanent Split Capacitor)

• Capacitor Requirement: 8 MFD / 370 VAC

• Rotation: Clockwise

• Insulation Class: B

• Thermal Protection: Thermally Protected

• Bearing Type: Sleeve Bearing

• Duty: Continuous

• Max Ambient Temperature: 40 °C

• Typical Use: Furnace / Unit Heater Blower Motor

• Compatible Equipment Types: Gas unit heaters and similar HVAC systems

CROSS REFERENCE

131410

163891

7162-3845

7162-6474

F33AA01A13

FE165

JE1F026

JE1F026H

229-482/73

RPB125

RPB150

RPB175

HRPD250

HRPD300

HRPD350

HRPD400
