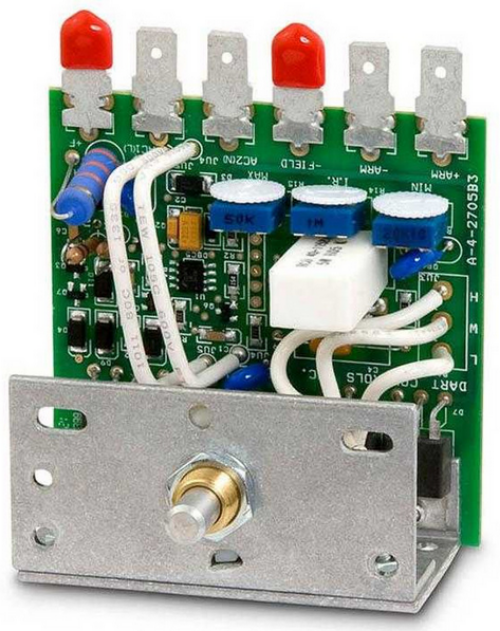

15DV2A, DC Speed Control, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/50 to 1/6Hp 120VAC/90VDC, 1/25 to 1/3Hp 240VAC/180VDC, 2ADC Current, Vertical

15DV2A, DC Speed Control, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/50 to 1/6Hp 120VAC/90VDC, 1/25 to 1/3Hp 240VAC/180VDC, 2ADC Current, Vertical

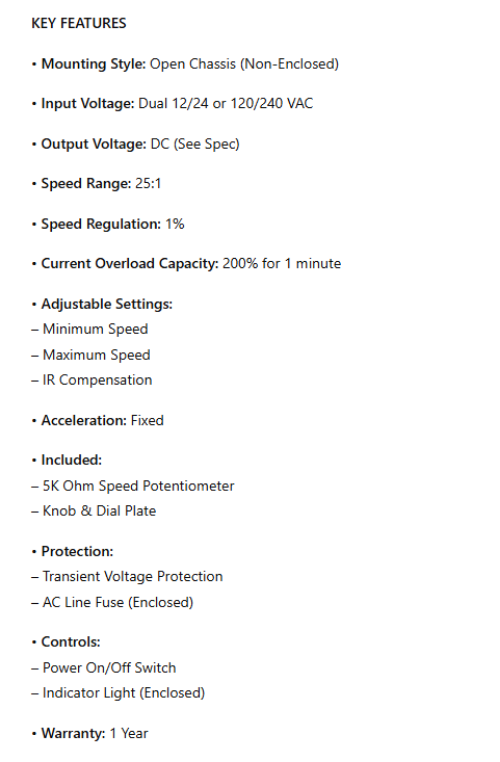

KEY FEATURES

• Mounting Style: Open Chassis (Non-Enclosed)

• Input Voltage: Dual 12/24 or 120/240 VAC

• Output Voltage: DC (See Spec)

• Speed Range: 25:1

• Speed Regulation: 1%

• Current Overload Capacity: 200% for 1 minute

• Adjustable Settings:
– Minimum Speed
– Maximum Speed
– IR Compensation

• Acceleration: Fixed

• Included:
– 5K Ohm Speed Potentiometer
– Knob & Dial Plate

• Protection:
– Transient Voltage Protection
– AC Line Fuse (Enclosed)

• Controls:
– Power On/Off Switch
– Indicator Light (Enclosed)

• Warranty: 1 Year

The 15 Series is an OEM designer favorite foruse with small motors found in a wide variety
of applications. Two chassis styles and both NEMA 1 and NEMA 4 enclosed models make
the 15 Series an easy choice for your fractionalHP application needs. The updated circuit
utilizes SMT technology to deliver maximumpower density from the smallest possible package, without sacrificing speed rangeor regulation.

Typical applications include conveyors andmaterial handling, food equipment, dryers
and ovens.
