15DV1A, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/50 to 1/6Hp 120VAC/90VDC, 1/25 to 1/3Hp 240VAC/180VDC, 2ADC Current

15DV1A, Open Chassis, 120/240VAC Supply Voltage, 90/180VDC Motor Voltage, 1/50 to 1/6Hp 120VAC/90VDC, 1/25 to 1/3Hp 240VAC/180VDC, 2ADC Current

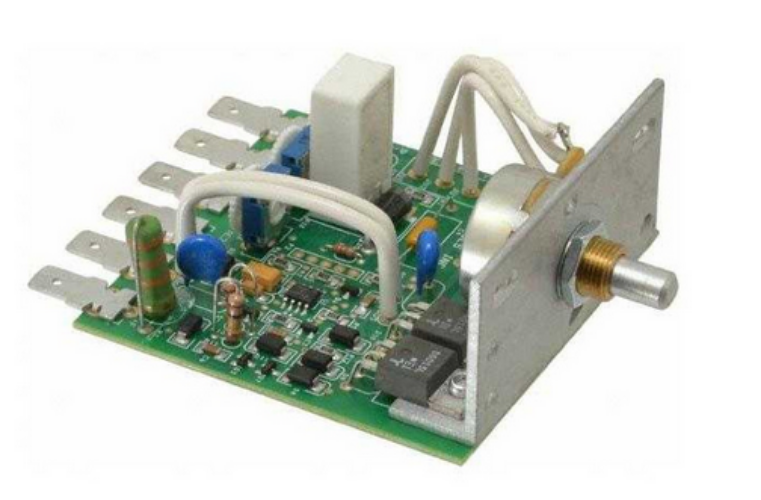

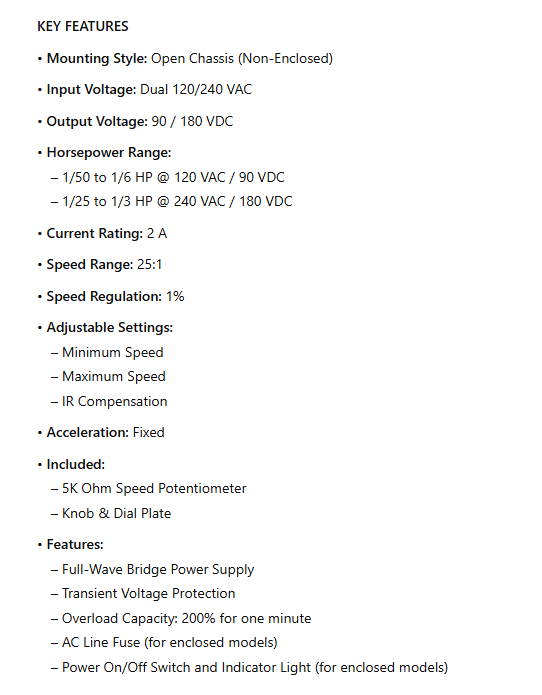

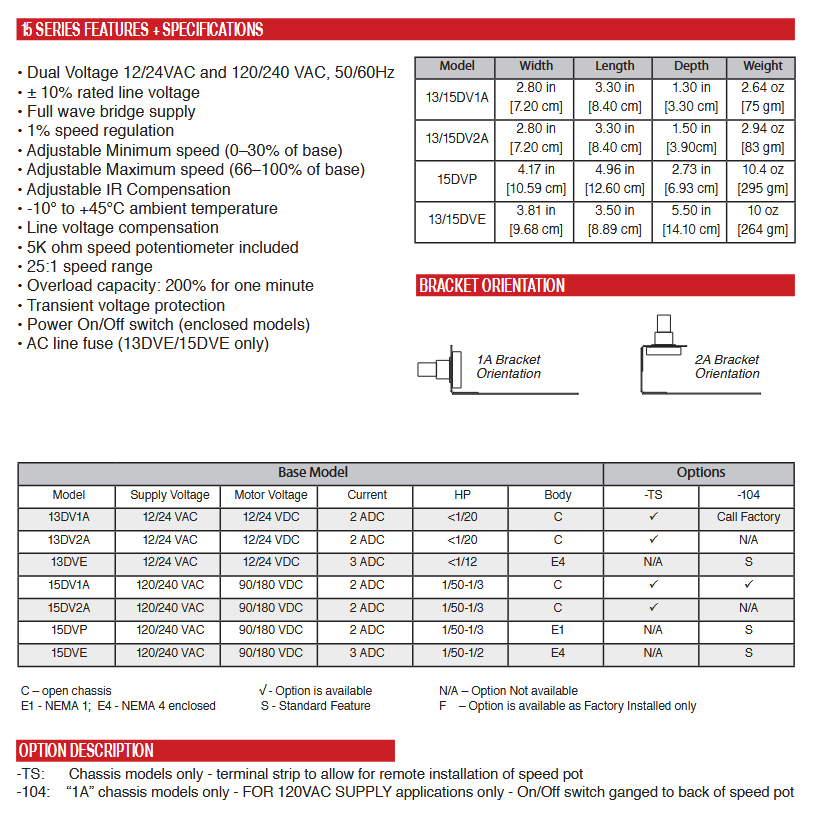

KEY FEATURES

• Mounting Style: Open Chassis (Non-Enclosed)

• Input Voltage: Dual 120/240 VAC

• Output Voltage: 90 / 180 VDC

• Horsepower Range:
 – 1/50 to 1/6 HP @ 120 VAC / 90 VDC
 – 1/25 to 1/3 HP @ 240 VAC / 180 VDC

• Current Rating: 2 A

• Speed Range: 25:1

• Speed Regulation: 1%

• Adjustable Settings:
 – Minimum Speed
 – Maximum Speed
 – IR Compensation

• Acceleration: Fixed

• Included:
 – 5K Ohm Speed Potentiometer
 – Knob & Dial Plate

• Features:
 – Full-Wave Bridge Power Supply
 – Transient Voltage Protection
 – Overload Capacity: 200% for one minute
 – AC Line Fuse (for enclosed models)
 – Power On/Off Switch and Indicator Light (for enclosed models)

The 15 Series is an OEM designer favorite foruse with small motors found in a wide variety
of applications. Two chassis styles and both NEMA 1 and NEMA 4 enclosed models make
the 15 Series an easy choice for your fractionalHP application needs. The updated circuit
utilizes SMT technology to deliver maximumpower density from the smallest possible package, without sacrificing speed rangeor regulation.

Typical applications include conveyors andmaterial handling, food equipment, dryers
and ovens.
