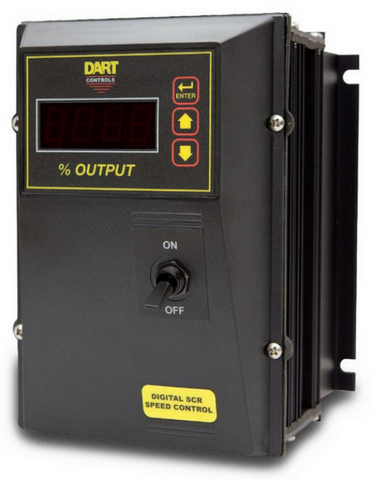

153D-25E-PB-29, 153D-PB SERIES 1/50Hp-1/4Hp 90-180VDC Digital Pot Led Display Reverse Ip66/Nema4x

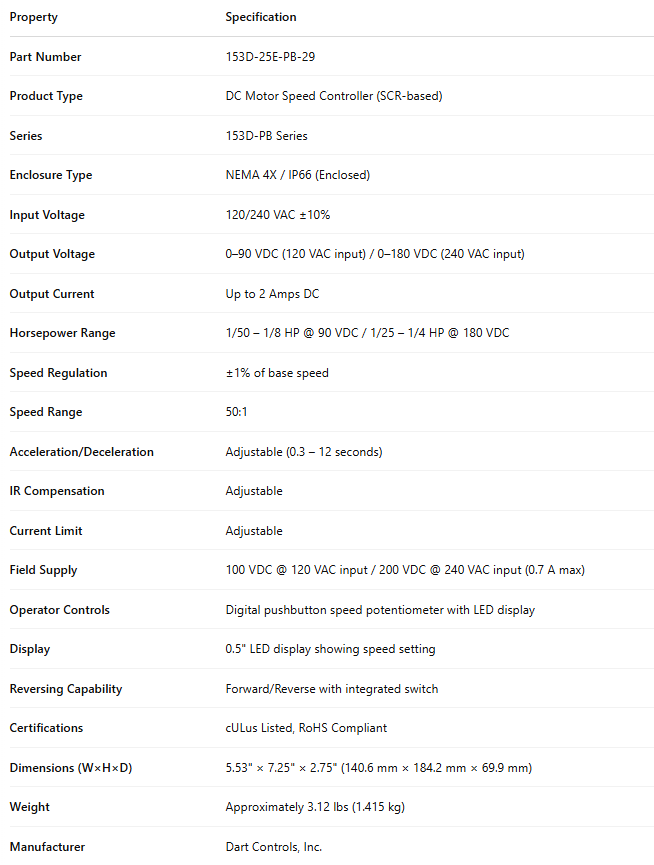

Property	Specification
Part Number	153D-25E-PB-29
Product Type	DC Motor Speed Controller (SCR-based)
Series	153D-PB Series
Enclosure Type	NEMA 4X / IP66 (Enclosed)
Input Voltage	120/240 VAC ±10%
Output Voltage	0–90 VDC (120 VAC input) / 0–180 VDC (240 VAC input)
Output Current	Up to 2 Amps DC
Horsepower Range	1/50 – 1/8 HP @ 90 VDC / 1/25 – 1/4 HP @ 180 VDC
Speed Regulation	±1% of base speed
Speed Range	50:1
Acceleration/Deceleration	Adjustable (0.3 – 12 seconds)
IR Compensation	Adjustable
Current Limit	Adjustable
Field Supply	100 VDC @ 120 VAC input / 200 VDC @ 240 VAC input (0.7 A max)
Operator Controls	Digital pushbutton speed potentiometer with LED display
Display	0.5" LED display showing speed setting
Reversing Capability	Forward/Reverse with integrated switch
Certifications	cULus Listed, RoHS Compliant

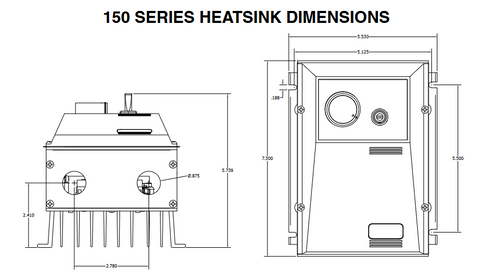

Dimensions (W×H×D)	5.53" × 7.25" × 2.75" (140.6 mm × 184.2 mm × 69.9 mm)
Weight	Approximately 3.12 lbs (1.415 kg)
Manufacturer	Dart Controls, Inc.

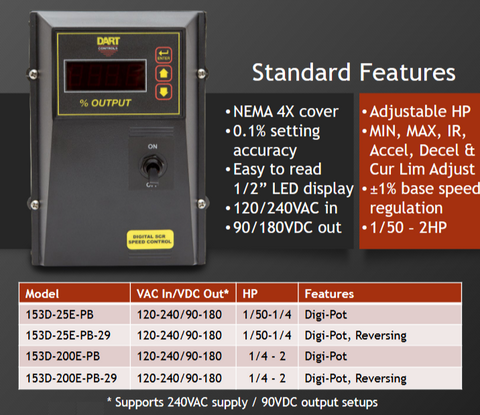

Now, you can have all the advantages of a digital control without the need to install an encoder. The 153D-PB Series adds the accuracy and repeatability of a digital pushbutton speed pot to our best and latest DC drive.

The 153D-PB Series is the only DC drive on the market with a standard digital potentiometer. Our customers asked for it, and now it is here. Digital accuracy and repeatability are the reason why the 153D-PB Series is the right DC drive for your next upgrade / project.
