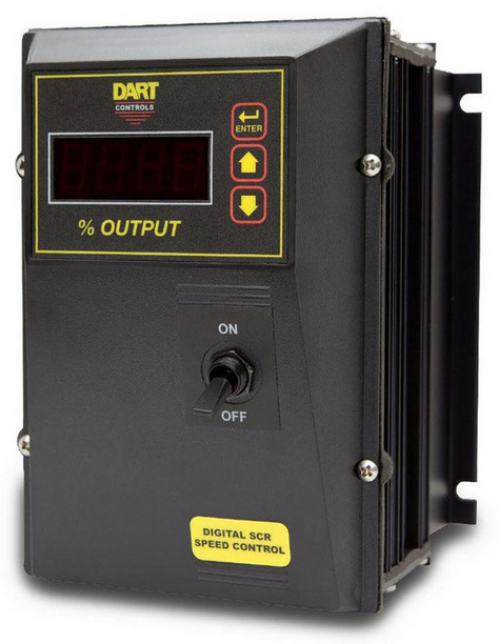

153D-200E-PB, 153D-PB Series 1/8Hp-2Hp 90-180VDC Digital Pot Led Display Non-Reverse Ip66/Nema4x

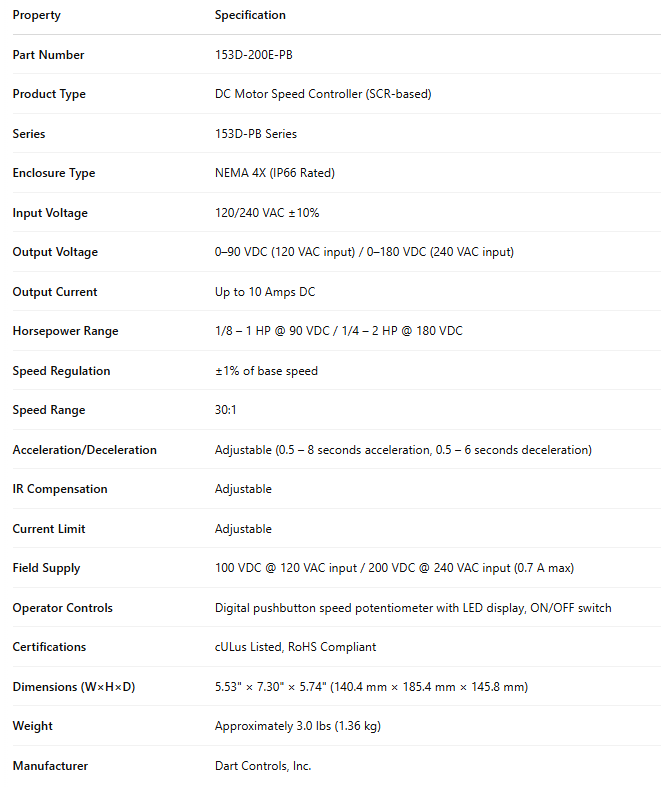

Property	Specification
Part Number	153D-200E-PB
Product Type	DC Motor Speed Controller (SCR-based)
Series	153D-PB Series
Enclosure Type	NEMA 4X (IP66 Rated)
Input Voltage	120/240 VAC ±10%
Output Voltage	0–90 VDC (120 VAC input) / 0–180 VDC (240 VAC input)
Output Current	Up to 10 Amps DC
Horsepower Range	1/8 – 1 HP @ 90 VDC / 1/4 – 2 HP @ 180 VDC
Speed Regulation	±1% of base speed
Speed Range	30:1
Acceleration/Deceleration	Adjustable (0.5 – 8 seconds acceleration, 0.5 – 6 seconds deceleration)
IR Compensation	Adjustable
Current Limit	Adjustable
Field Supply	100 VDC @ 120 VAC input / 200 VDC @ 240 VAC input (0.7 A max)
Operator Controls	Digital pushbutton speed potentiometer with LED display, ON/OFF switch
Certifications	cULus Listed, RoHS Compliant

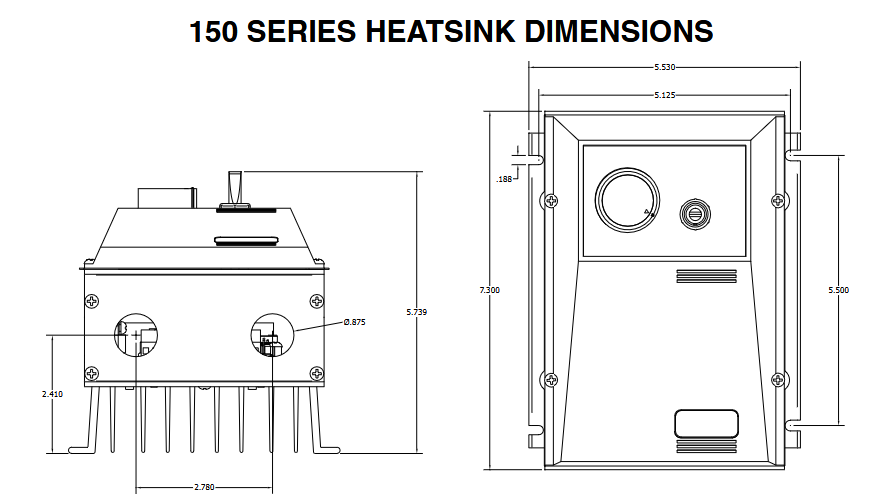

Dimensions (W×H×D)	5.53" × 7.30" × 5.74" (140.4 mm × 185.4 mm × 145.8 mm)
Weight	Approximately 3.0 lbs (1.36 kg)
Manufacturer	Dart Controls, Inc.

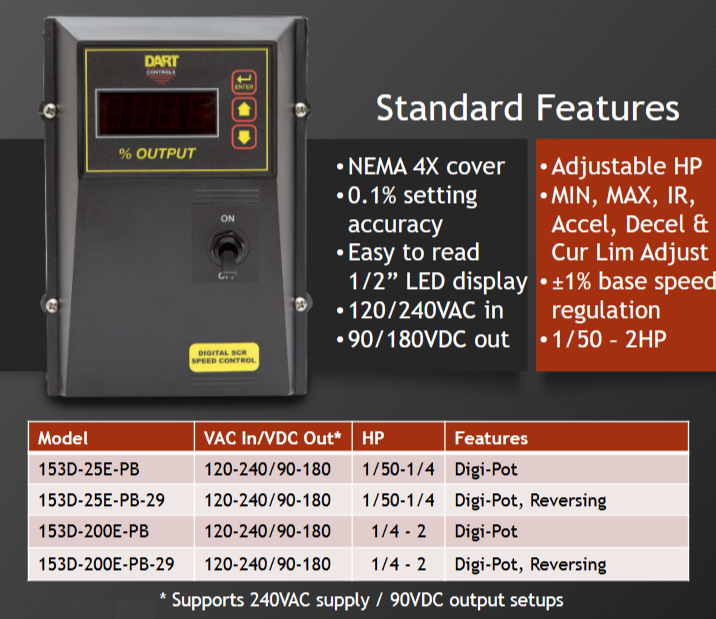

Now, you can have all the advantages of a digital control without the need to install an encoder. The 153D-PB Series adds the accuracy and repeatability of a digital pushbutton speed pot to our best and latest DC drive.

The 153D-PB Series is the only DC drive on the market with a standard digital potentiometer. Our customers asked for it, and now it is here. Digital accuracy and repeatability are the reason why the 153D-PB Series is the right DC drive for your next upgrade / project.
