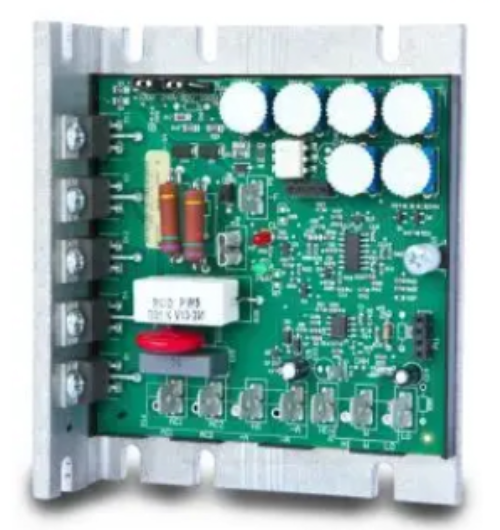

153D-200C-T-Z2016, BULK - OPEN CHASSIS, SUPPLY 120/240VAC, 1/8-1/2 (90VDC) 1/4-1Hp (180VDC)

153D-200C-T-Z2016, BULK - OPEN CHASSIS, SUPPLY 120/240VAC, 1/8-1/2 (90VDC) 1/4-1Hp (180VDC)

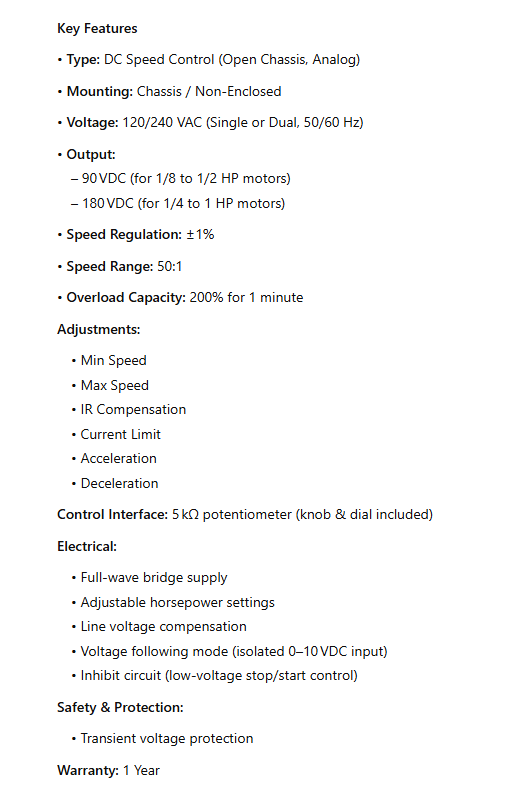

Key Features

• Type: DC Speed Control (Open Chassis, Analog)

• Mounting: Chassis / Non‑Enclosed

• Voltage: 120/240 VAC (Single or Dual, 50/60 Hz)

• Output:
 – 90 VDC (for 1/8 to 1/2 HP motors)
 – 180 VDC (for 1/4 to 1 HP motors)

• Speed Regulation: ±1%

• Speed Range: 50:1

• Overload Capacity: 200% for 1 minute

Adjustments:

 • Min Speed
 • Max Speed
 • IR Compensation
 • Current Limit
 • Acceleration
 • Deceleration

Control Interface: 5 kΩ potentiometer (knob & dial included)

Electrical:

 • Full‑wave bridge supply
 • Adjustable horsepower settings
 • Line voltage compensation
 • Voltage following mode (isolated 0–10 VDC input)
 • Inhibit circuit (low-voltage stop/start control)

Safety & Protection:

 • Transient voltage protection

Warranty: 1 Year

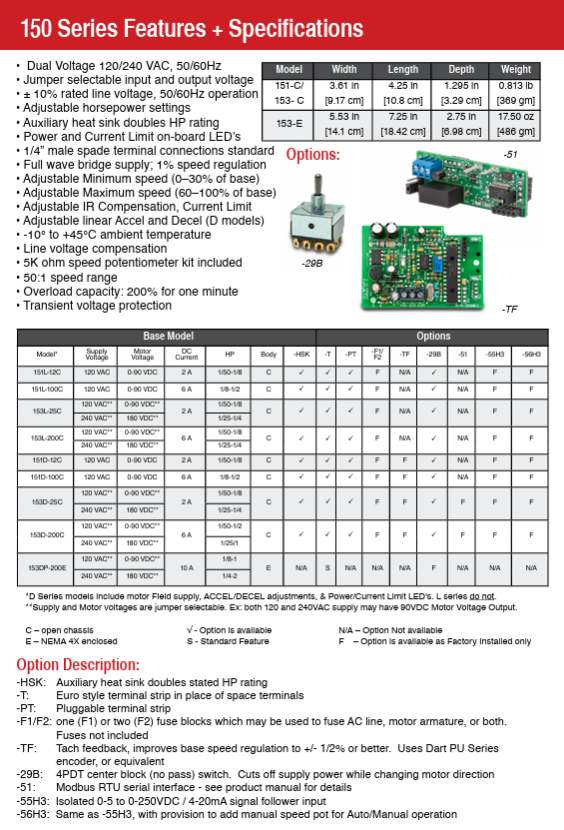

The 150 Series from Dart is the latest SCR drive offering, designed specifically with the OEM in mind.  This drive is complete with all the features the OEM designer may require, with the flexibility to add and subtract features as needed. Other suppliers have effectively abandoned any development of SCR drives – Dart believes there will always be applications for DC motors and drives.  For that reason, Dart has developed specifically for the 150 Series a number of industry unique and innovative features and options
