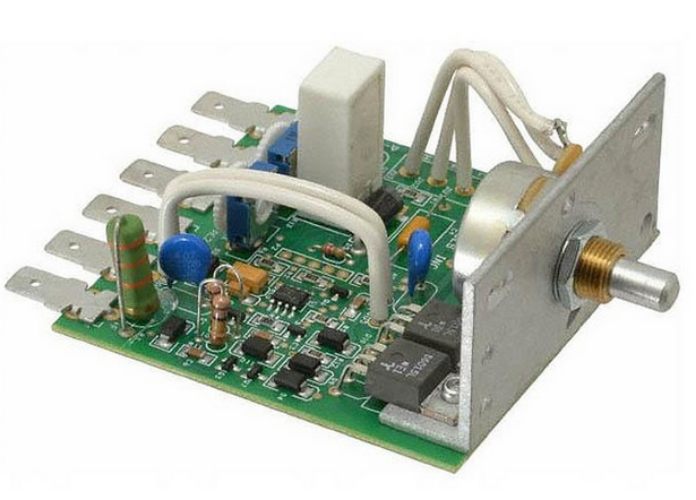

13DV1A, 15 Series Chassis 2AMP <1/20Hp 12-24/24-28VAC 0-11VDC OR 0-22VDC

E-Motor Nations

$296.23

13DV1A, 15 Series Chassis 2AMP <1/20Hp 12-24/24-28VAC 0-11VDC OR 0-22VDC

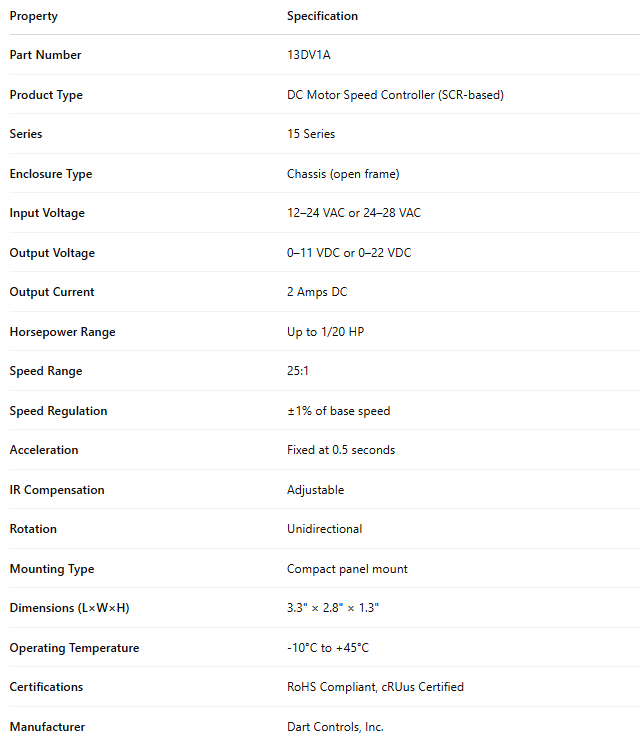

Property	Specification
Part Number	13DV1A
Product Type	DC Motor Speed Controller (SCR-based)
Series	15 Series
Enclosure Type	Chassis (open frame)
Input Voltage	12–24 VAC or 24–28 VAC
Output Voltage	0–11 VDC or 0–22 VDC
Output Current	2 Amps DC
Horsepower Range	Up to 1/20 HP
Speed Range	25:1
Speed Regulation	±1% of base speed
Acceleration	Fixed at 0.5 seconds
IR Compensation	Adjustable
Rotation	Unidirectional
Mounting Type	Compact panel mount
Dimensions (L×W×H)	3.3" × 2.8" × 1.3"
Operating Temperature	-10°C to +45°C
Certifications	RoHS Compliant, cRUus Certified
Manufacturer	Dart Controls, Inc.

The 15 Series is an OEM designer favorite for use with small motors found in a wide variety of applications. Two chassis styles and both NEMA 1 and NEMA 4 enclosed models make the 15 Series an easy choice for your fractional HP application needs. The updated circuit utilizes SMT technology to deliver maximum power density from the smallest possible package, without sacrificing speed range or regulation.

Typical applications include conveyors andmaterial handling, food equipment, dryers and ovens.
