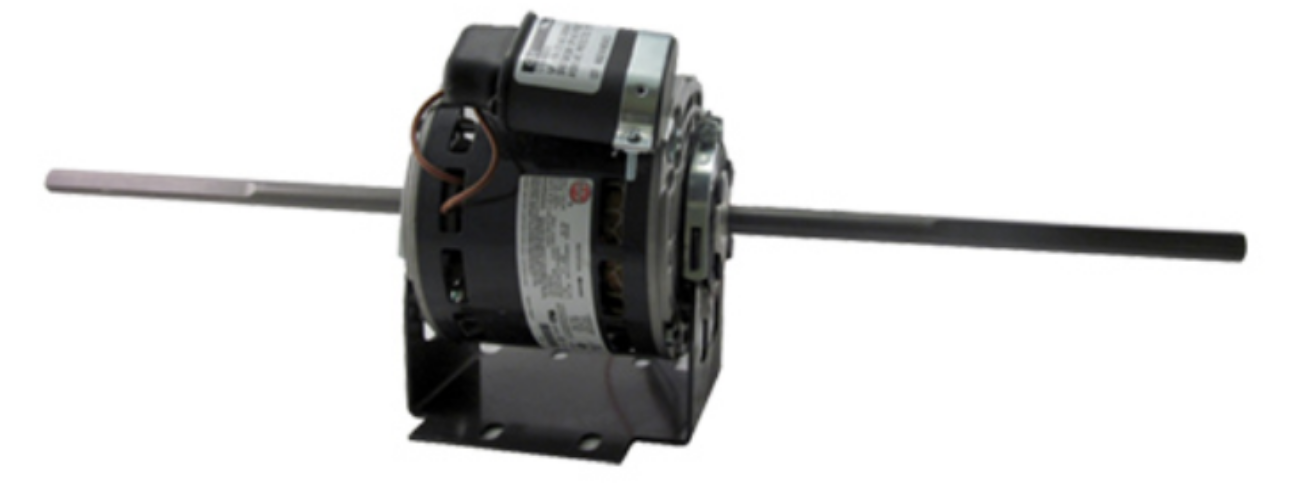

1090, 0.067Hp, 1100 RPm, 115V, 60 Hz, Fr. 42, CWLE, K048TBD3640013B

1090, 0.067Hp, 1100 RPm, 115V, 60 Hz, Fr. 42, CWLE, K048TBD3640013B

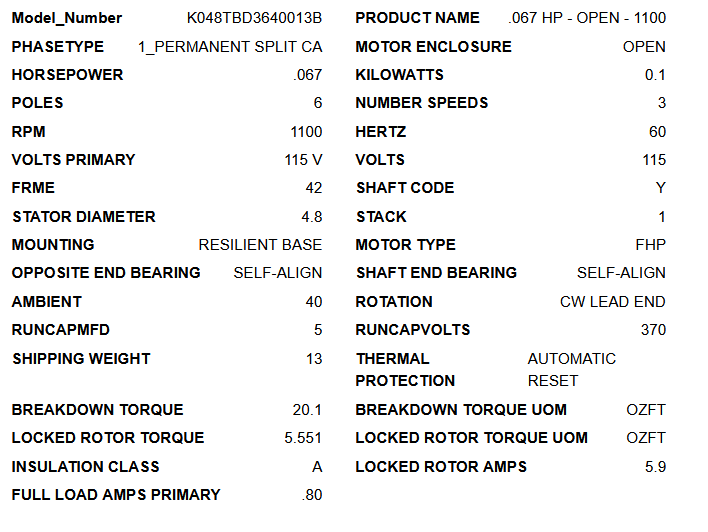

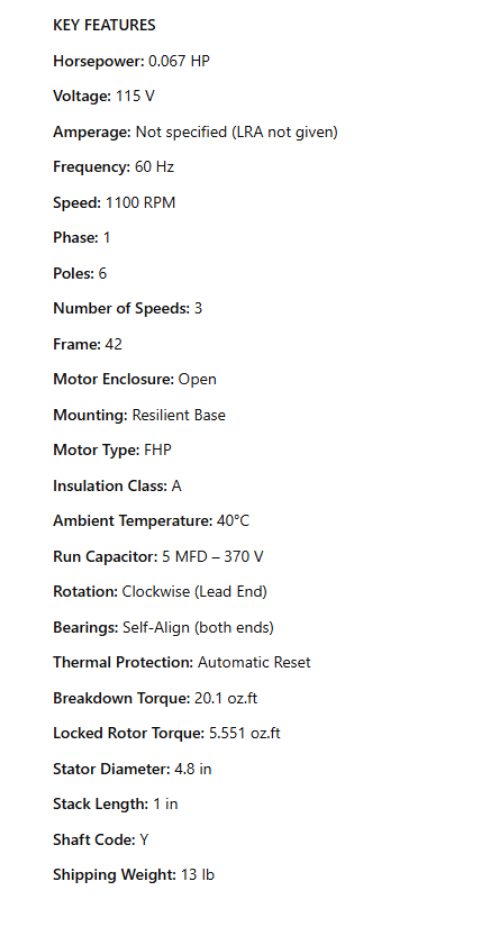

KEY FEATURES

Horsepower: 0.067 HP

Voltage: 115 V

Amperage: Not specified (LRA not given)

Frequency: 60 Hz

Speed: 1100 RPM

Phase: 1

Poles: 6

Number of Speeds: 3

Frame: 42

Motor Enclosure: Open

Mounting: Resilient Base

Motor Type: FHP

Insulation Class: A

Ambient Temperature: 40°C

Run Capacitor: 5 MFD – 370 V

Rotation: Clockwise (Lead End)

Bearings: Self-Align (both ends)

Thermal Protection: Automatic Reset

Breakdown Torque: 20.1 oz.ft

Locked Rotor Torque: 5.551 oz.ft

Stator Diameter: 4.8 in

Stack Length: 1 in

Shaft Code: Y

Shipping Weight: 13 lb
