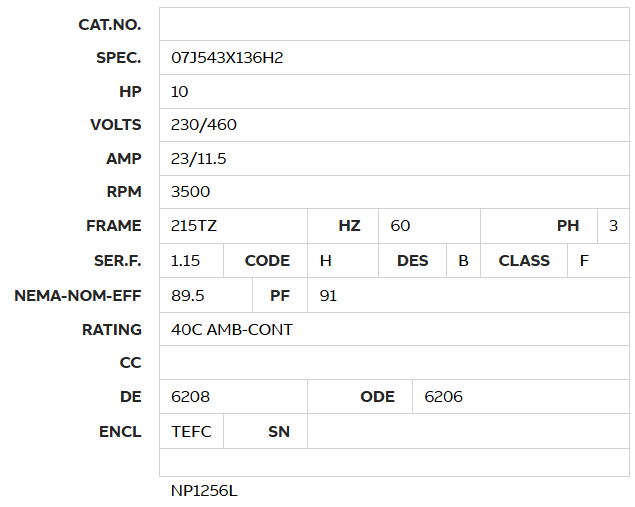

07J543X136H2, 10Hp, 3500RPM, 230/460V, 3Ph, 60HZ, Frame 215T, Special Heater 115V + Thermostat TECF

07J543X136H2, 10Hp, 3500RPM, 230/460V, 3Ph, 60HZ, Frame 215T, Special Heater 115V + Thermostat TECF

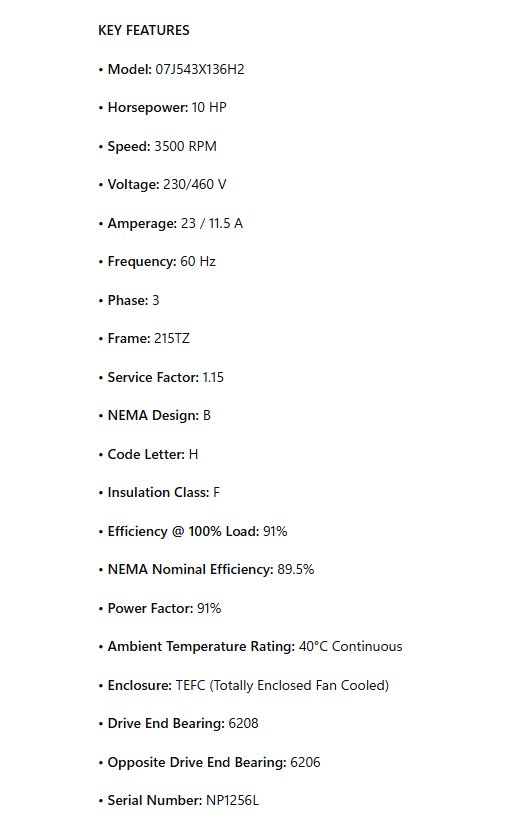

KEY FEATURES

• Model: 07J543X136H2

• Horsepower: 10 HP

• Speed: 3500 RPM

• Voltage: 230/460 V

• Amperage: 23 / 11.5 A

• Frequency: 60 Hz

• Phase: 3

• Frame: 215TZ

• Service Factor: 1.15

• NEMA Design: B

• Code Letter: H

• Insulation Class: F

• Efficiency @ 100% Load: 91%

• NEMA Nominal Efficiency: 89.5%

• Power Factor: 91%

• Ambient Temperature Rating: 40°C Continuous

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Drive End Bearing: 6208

• Opposite Drive End Bearing: 6206

• Serial Number: NP1256L
