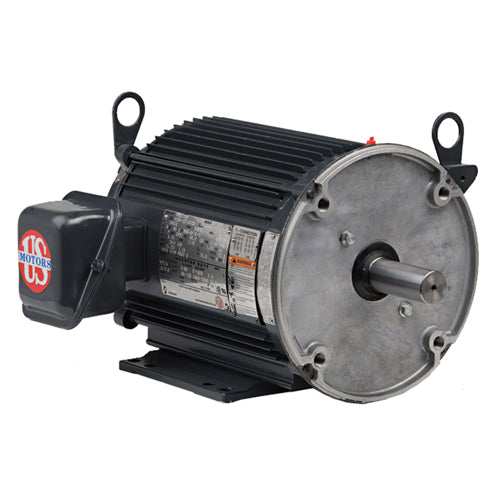

UN2T2GC, Accu-Torq, 2 Hp, 1800 Rpm, 575V, Fr:145TC, TENV, Us Motors,
UN2T2GC, Accu-Torq, 2 Hp, 1800 Rpm, 575V, Fr:145TC, TENV, Us Motors, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
![UN2T2GC, Accu-Torq, 2 Hp, 1800 Rpm, 575V, Fr:145TC, TENV, Us Motors, - BLACKMAX MOTORS - Industrial Supply & Co - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur - fan](http://www.emotornations.com/cdn/shop/products/UN2T2GC_UsMotors_Nidec.jpg?v=1756413894&width=112)
UN2T2GC, Accu-Torq, 2 Hp, 1800 Rpm, 575V, Fr:145TC, TENV, Us Motors,
Description
Description
UN2T2GC, Accu-Torq, Nidec, Us Motors,Model # FD98,Y557 Marathon,145THTN6060, IDVSNM3587T-5, 05E534X086G1
Motors are designed for use in applications where full torque at zero speed is required. Nidec had high-performance, high power, and light weight all in mind when designing and manufacturing these electric motors.
- MaxGuard® inverter-rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted).
- Constant torque operation from 0 to base speed on vector drive.
- Double-shielded ball bearings provide longer service life.
- Normally closed thermostats (one per phase, Class F or H as noted).
Nameplate Specifications
| Output HP: | 2 Hp | Output KW: | 1.5 kW |
| Frequency: | 60 Hz | Voltage: | 575 V |
| Current: | 2.4 A | Speed: | 1750 rpm |
| Service Factor: | 1 | Phase: | 3 |
| Efficiency: | 85.5 % | Power Factor: | 78 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | INV | KVA Code: | M |
| Frame: | 145TC | Enclosure: | Totally Enclosed Non Ventilated |
| Thermal Protection: | Thermostat | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 43 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Squirrel Cage Inverter Duty | Starting Method: | Inverter Only |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 6.48 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Cast Iron |
| Shaft Type: | T | Overall Length: | 14.68 in |
| Frame Length: | 6.25 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.12 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
| Inverter Load: | CONSTANT 5000:1 |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (LB-FT) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 18.50 | 617.0 | 28.50 | 475.0 | 1,500 | 79.5 | 2.00 | |
| Full Load | 3.00 | 100.0 | 6.00 | 100.0 | 1,750 | 2.00 | ||
| No Load | 1.70 | 57.0 | 0.00 | 0.0 | 1,800 | 2.00 | ||
| 2/3 | 21.00 | 700.0 | 23.00 | 383.0 | 1,200 | 2.00 | ||
| Pull-Up | 22.50 | 750.0 | 19.50 | 325.0 | 900 | 2.00 | ||
| Locked-Rotor | 25.00 | 833.0 | 21.80 | 363.0 | 0 | 65.0 | 2.00 | |
| 1/3 | 24.00 | 800.0 | 18.50 | 308.0 | 600 | 2.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % | 200 % |
| Current (Amps) | 1.36 | 1.52 | 1.68 | 2.00 | 2.40 | 2.80 | 3.20 | 4.24 |
| Rated Output (KW) | 0.11 | 0.50 | 0.90 | 1.30 | 1.80 | 2.20 | 2.70 | 3.60 |
| Efficiency (%) | 0.0 | 73.5 | 82.0 | 84.0 | 85.5 | 85.0 | 84.0 | 80.0 |
| Power Factor (%) | 7.8 | 34.5 | 53.5 | 66.0 | 78.0 | 81.0 | 83.0 | 84.0 |
| Speed (RPM) | 1,800 | 1,788 | 1,776 | 1,765 | 1,750 | 1,740 | 1,725 | 1,700 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 85.0 | 0.0 | 0.0 | 0.0 |
| Torque (LB-FT) | 0.00 | 1.50 | 3.00 | 4.50 | 6.00 | 7.50 | 9.10 | 12.00 |
