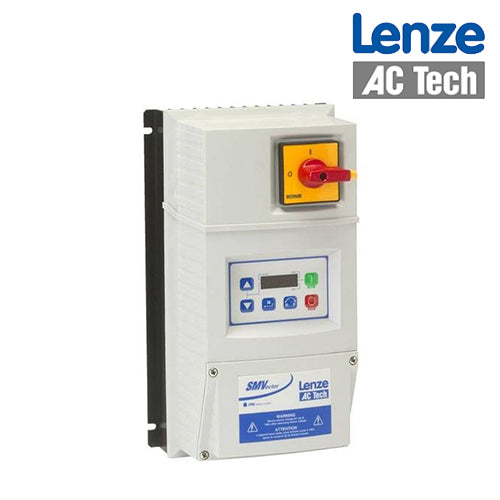

ESV751N02YMC, Lenze, 1 Hp, 230V, VFD, Nema 4X, Disconnect, 1/3 Phases

ESV751N02YMC, Lenze, VFD Drives,

SMV SERIES SENSORLESS VECTOR , ESV751N02YMC,

• 1HP /
• 240V,
• 1/3PH(i/p) /
• 230V,
• 3PH(o/p) /
• 4.2A(o/p)
• Cont. /
• NEMA4X c/w DISCONNECT
• VFD SMV
• 1/3 Phases
• 1 or 3 phases input
• 3 phases output

World Class Control Modes of Operation

• Sequencer, timing and step functions, Open Loop Flux Vector, Speed or Torque Control with/without Auto Tuning V/Hz (Constant or Variable)

• Base Frequency Adjustable to Motor Specs Enhanced V/Hz with Auto-tuning Acceleration/Deceleration Profiles

• Two Independent Accel Ramps Two Independent Decel Ramps Linear, S-Type

• Auxiliary Ramp(or Coast)-to-Stop Fixed Accel Boost for Improved Starting 500 Hz Output Frequency High Carrier (PWM Sine-Coded) Frequency 4, 6, 8, 10 kHz Universal Logic Assertion (Selectable)

• Positive or Negative Logic Input Digital Reference Available Braking Functions • DC Injection Braking • Optional Dynamic Braking

• Flux Braking w/adjustable Flux Level and Decel Time Speed Commands • Keypad, Potentiometer Jog and 8 Pre-set Speeds

• Floating Point Control Sequencer, 16 Segments

• Voltage: scalable 0 –10 VDC Current: scalable 4 – 20 mA Process Control

• PID Modes: direct and reverse acting PID Sleep Mode w/ adjustable recovery threshold • Analog Output (speed, load, torque, kW)

• Terminal and keypad status• Elapsed Run or Power -On time (hours) Status Outputs

• Programmable form “A” relay output

• Programmable open collector output

• Scalable 0-10 VDC/2-10 VDC analog output 4-20mA w/500 Ohm Total Impedance Environment Ambient Temperature

• -10 to 55°C • Derate 2.5% per °C above 40°C Comprehensive Diagnostic Tools Real Time Monitoring

• 8 Register Fault History

• Software Version

• Drive Network ID

• DC Bus Voltage (V)

• Output Current (%)

• Motor Current (A)

• Motor Torque (%)

• Power (Hp, kW)

• Energy Consumption (kWh)

• Heatsink Temperature (°C)

• 0 – 10 VDC Input (user defined)

• 4 – 20 mA Input (user defined)

• PID Feedback (user defined) Vigilant System Protection Voltage Monitoring • Low and High DC Bus V Protection

• Low Line V Compensation Current Monitoring Motor Overload Protection

• Current Limiting Safeguard

• Ground Fault

• Short Circuit Protection Four Restart Modes

• Three Flying and One Auto

• User Enabled Loss of Follower Management

• Protective fault

• Go to Pre-set speed or Pre-set set-point

• Initiate System notification Over Temperature Protection International Voltages

• +10/-15% Tolerance

• 120/240V, 1Ø

• 200/240V, 1 or 3Ø

• 200/240V, 3Ø

• 400/480V, 3Ø • 480/600V, 3Ø Global Standards

• UL EAC • cUL C-Tick • CE Low Voltage (EN61800-5-1) • CE EMC (EN61800-3) with optional EMC filter • RoHS • EC S
