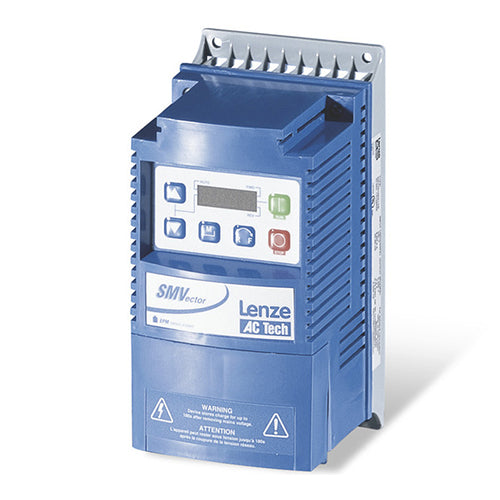

ESV251N01SXB, SMV 0.33Hp / 120/240V, 1PH(i/p) / 230V, 3PH(o/p) / 1.7A(o/p) Cont. / NEMA1

ESV251N01SXB, SMV SERIES SENSORLESS Vector 0.33Hp / 120/240V, 1PH(i/p) / 230V, 3PH(o/p) / 1.7A(o/p) Cont. / NEMA1

Equivalent : Leeson 174603.00

Key Features

• Dynamic Torque Response: Yes

• Acceleration & Deceleration Ramps: Two independent acceleration ramps

• Ramp Options:

  • Linear

  • S-Type

  • Auxiliary ramp-to-stop

• Fixed Acceleration Boost: Enhanced starting performance

• Output Frequency: 500 Hz (optional up to 1,000 Hz)

• Switching Frequency Options: 4, 6, 8, 10, 12, or 16 kHz

• Logic Input: Selectable positive or negative logic

• Braking Functions:

  • DC injection braking

  • Optional regenerative braking

  • Over-temperature protection

• Speed Commands:

  • Keypad

  • Potentiometer

  • Jog function

  • Floating point control with 8 preset speeds

  • 0–10 VDC (scalable)

  • 4–20 mA (scalable)

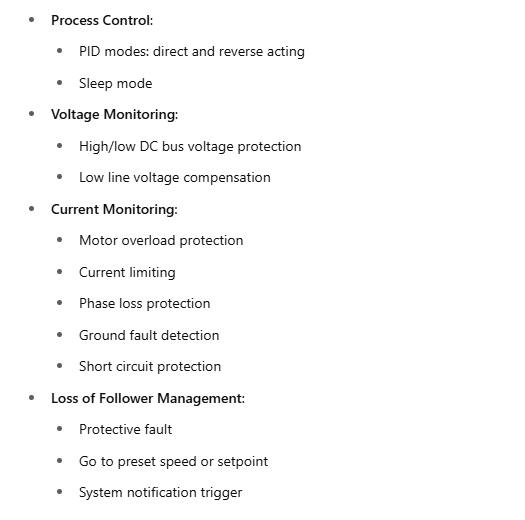

• Process Control:

  • PID modes: direct and reverse acting

  • Sleep mode

• Voltage Monitoring:

  • High/low DC bus voltage protection

  • Low line voltage compensation

• Current Monitoring:

  • Motor overload protection

  • Current limiting

  • Phase loss protection

  • Ground fault detection

  • Short circuit protection

• Loss of Follower Management:

  • Protective fault

  • Go to preset speed or setpoint

  • System notification trigger
