WEG  |  SKU : EMN-019070

OC003402W01DOE, Rolled Steel Premium Efficiency 3Hp 3480 Rpm 2P 56HC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

$499.05
shipping

Estimation des frais de livraison

Description

OC003402W01DOE,  Rolled Steel Premium Efficiency 3Hp 3480 Rpm 2P 56HC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

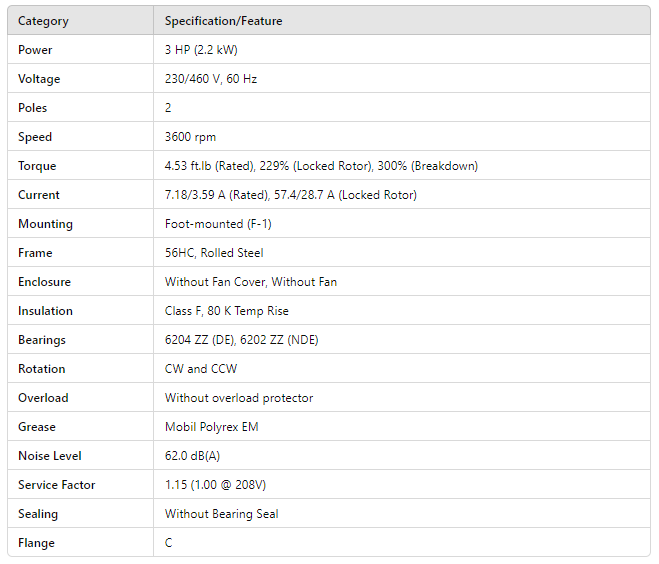

Category Specification/Feature
Power 3 HP (2.2 kW)
Voltage 230/460 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 4.53 ft.lb (Rated), 229% (Locked Rotor), 300% (Breakdown)
Current 7.18/3.59 A (Rated), 57.4/28.7 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56HC, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 62.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange C
