WEG  |  SKU : EMN-019261

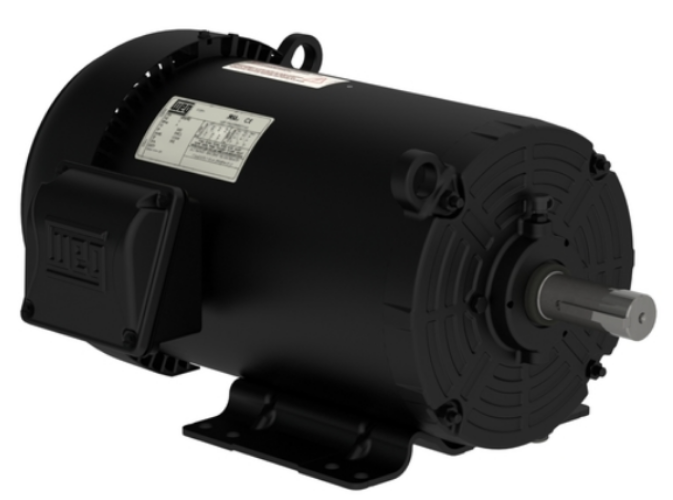

HT005404NPW01, Rolled Steel NEMA Premium Efficiency 5Hp 1750 Rpm 4P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

$772.93
shipping

Estimation des frais de livraison

Description

HT005404NPW01,  Rolled Steel NEMA Premium Efficiency 5Hp 1750 Rpm 4P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

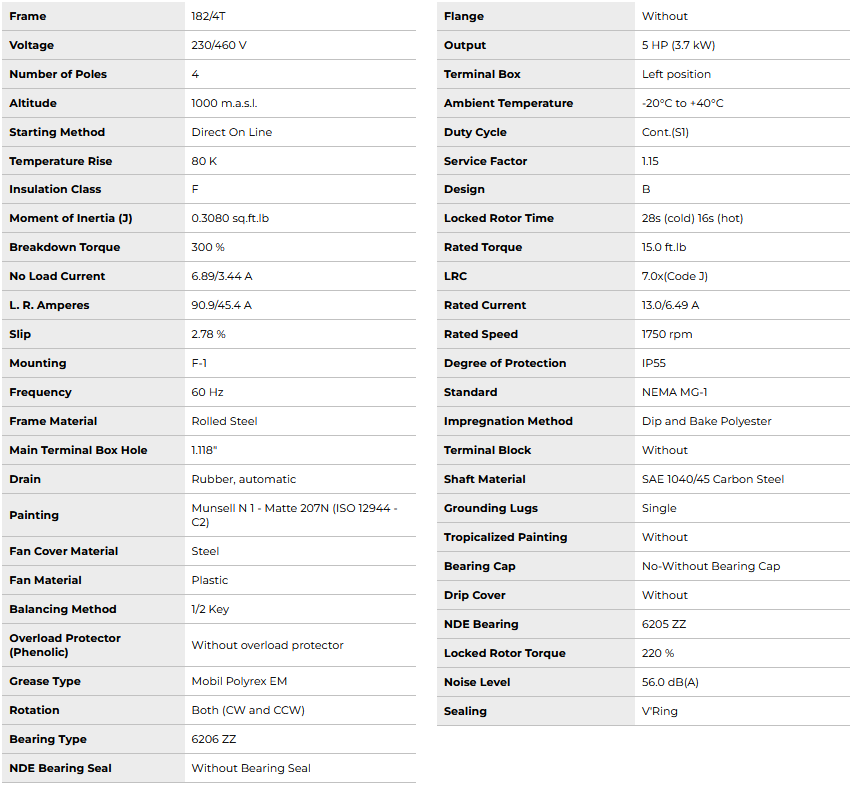

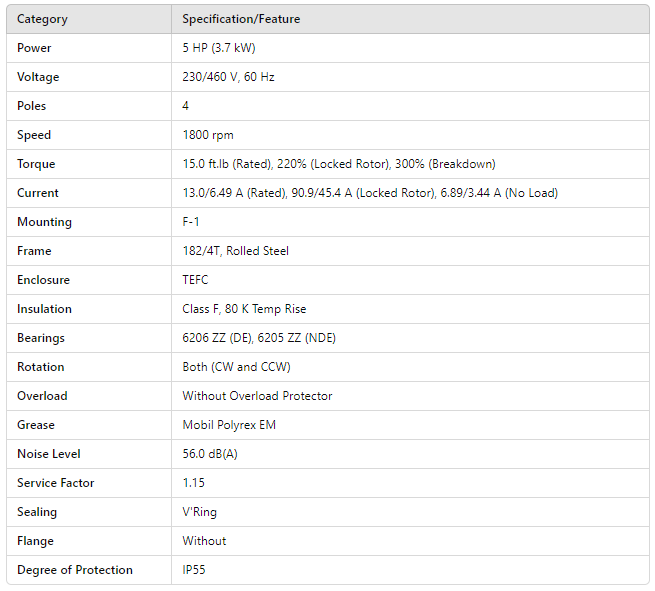

Category Specification/Feature
Power 5 HP (3.7 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 15.0 ft.lb (Rated), 220% (Locked Rotor), 300% (Breakdown)
Current 13.0/6.49 A (Rated), 90.9/45.4 A (Locked Rotor), 6.89/3.44 A (No Load)
Mounting F-1
Frame 182/4T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6206 ZZ (DE), 6205 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 56.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
