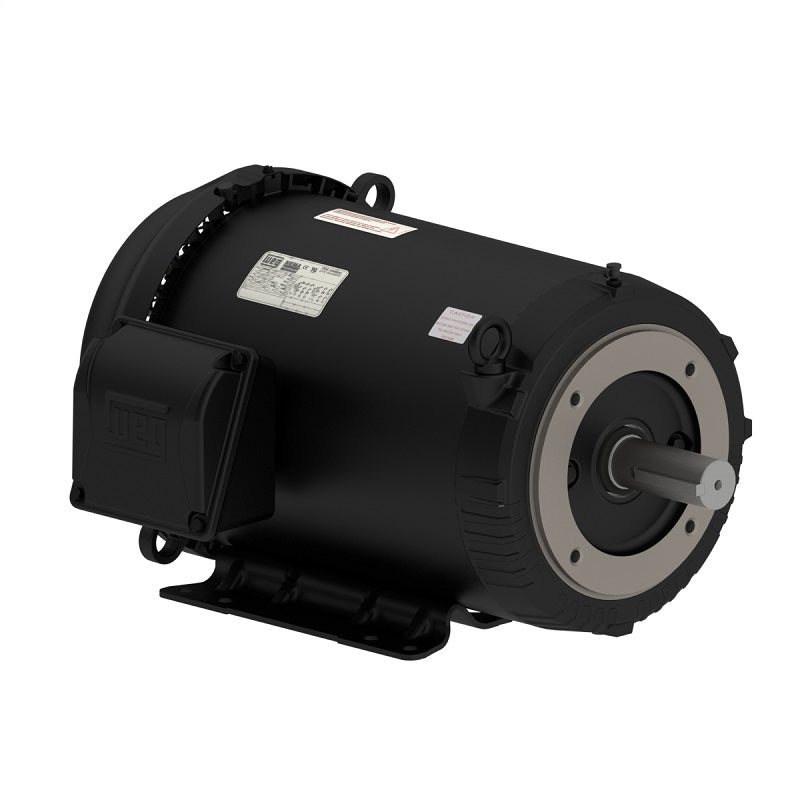

CT005402NPW01, 5 Hp, 3450 Rpm, 230/460V, Fr:182/4TC, TEFC, W01, Weg,

$806.89

CT005402NPW01, WEG,

Electric Motors

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	230/460 V
Rated current	11.8/5.90 A
L. R. Amperes	92.0/46.0 A
LRC	7.8x(Code J)
No load current	4.40/2.20 A
Rated torque	7.50 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.2079 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	90.7 lb
