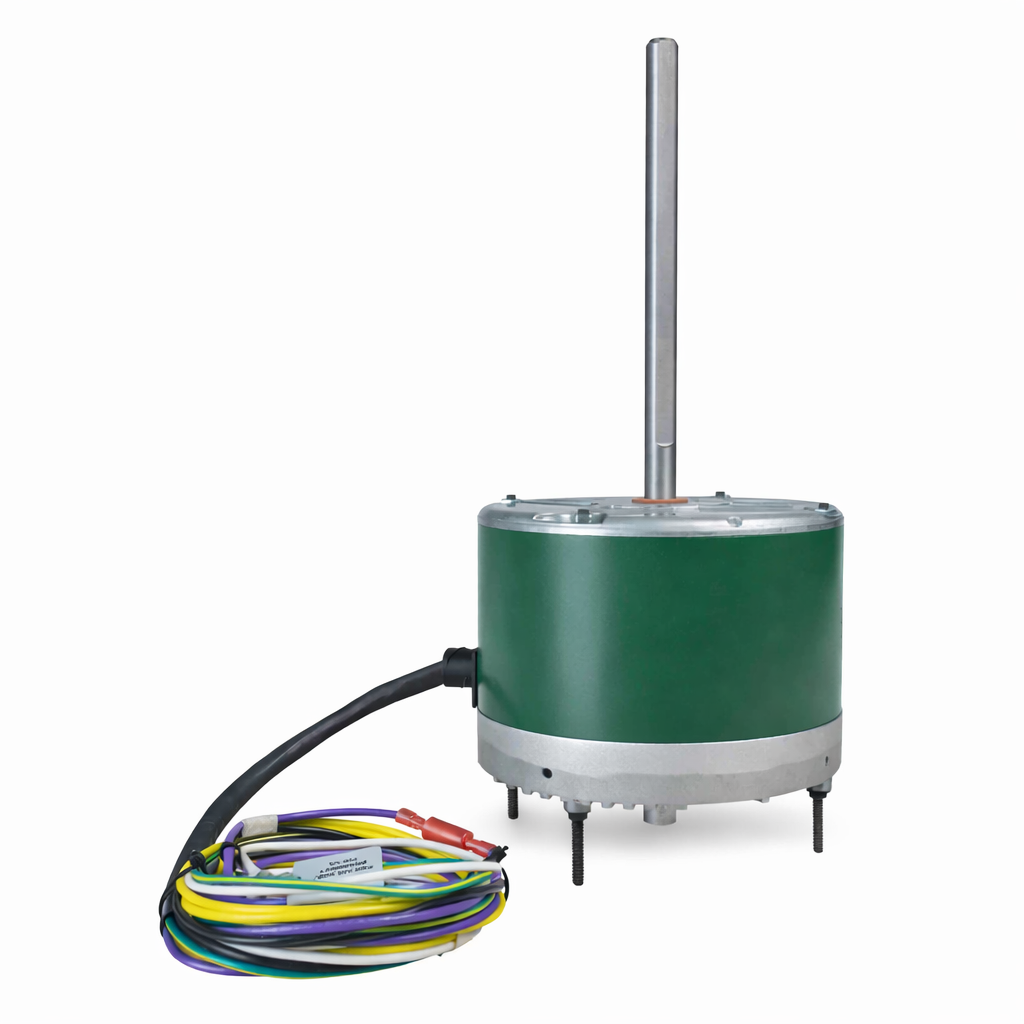

6303S, Condenser Fan Motor, 1/3Hp, 1 Ph, 60/50 Hz, 208-230 V, 825/1075 RPM, 2 Speed, 48 Frame, CLOSEDAO

6303S, Condenser Fan Motor, 1/3Hp, 1 Ph, 60/50 Hz, 208-230 V, 825/1075 RPM, 2 Speed, 48 Frame, CLOSEDAO

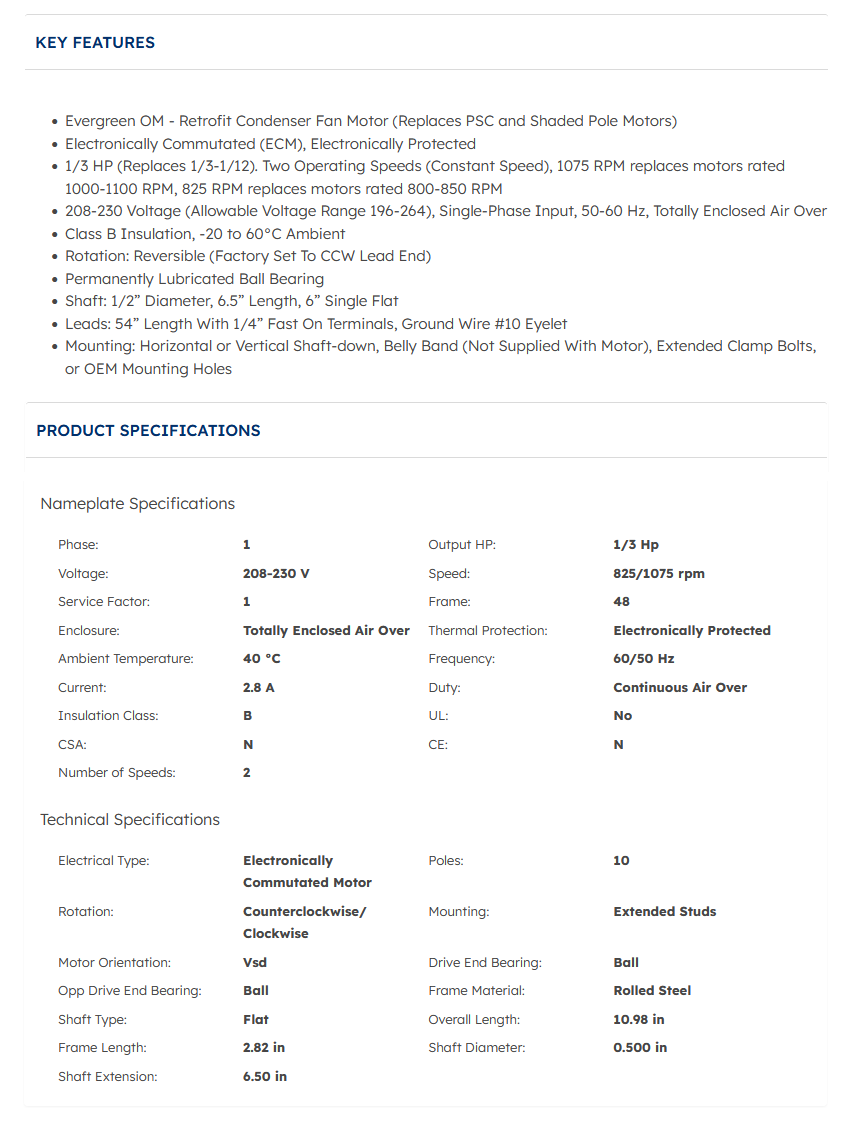

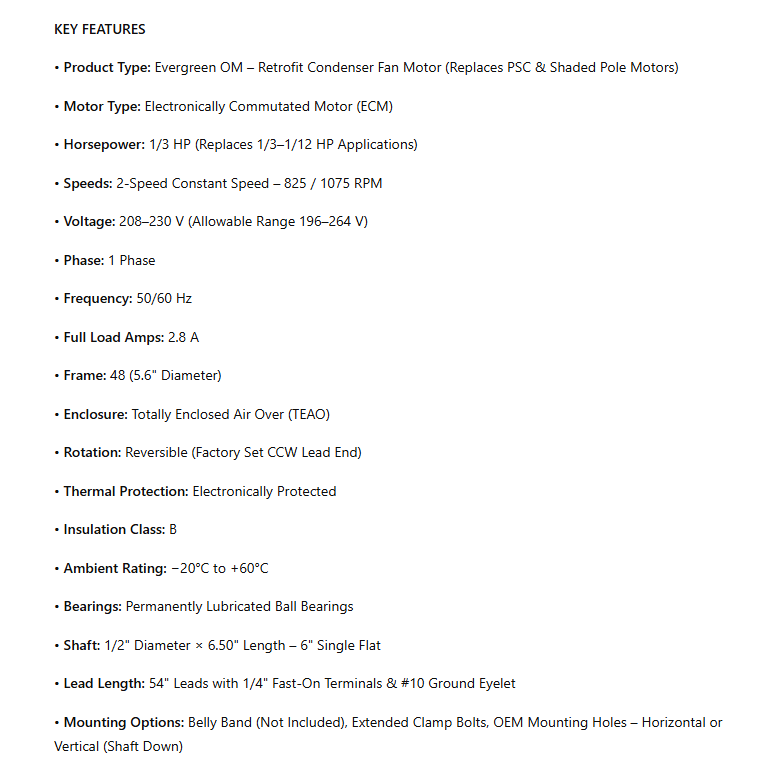

KEY FEATURES

• Product Type: Evergreen OM – Retrofit Condenser Fan Motor (Replaces PSC & Shaded Pole Motors)

• Motor Type: Electronically Commutated Motor (ECM)

• Horsepower: 1/3 HP (Replaces 1/3–1/12 HP Applications)

• Speeds: 2-Speed Constant Speed – 825 / 1075 RPM

• Voltage: 208–230 V (Allowable Range 196–264 V)

• Phase: 1 Phase

• Frequency: 50/60 Hz

• Full Load Amps: 2.8 A

• Frame: 48 (5.6" Diameter)

• Enclosure: Totally Enclosed Air Over (TEAO)

• Rotation: Reversible (Factory Set CCW Lead End)

• Thermal Protection: Electronically Protected

• Insulation Class: B

• Ambient Rating: −20°C to +60°C

• Bearings: Permanently Lubricated Ball Bearings

• Shaft: 1/2" Diameter × 6.50" Length – 6" Single Flat

• Lead Length: 54" Leads with 1/4" Fast-On Terminals & #10 Ground Eyelet

• Mounting Options: Belly Band (Not Included), Extended Clamp Bolts, OEM Mounting Holes – Horizontal or Vertical (Shaft Down)

CROSS REFERENCE

• 6303S

• 1879
