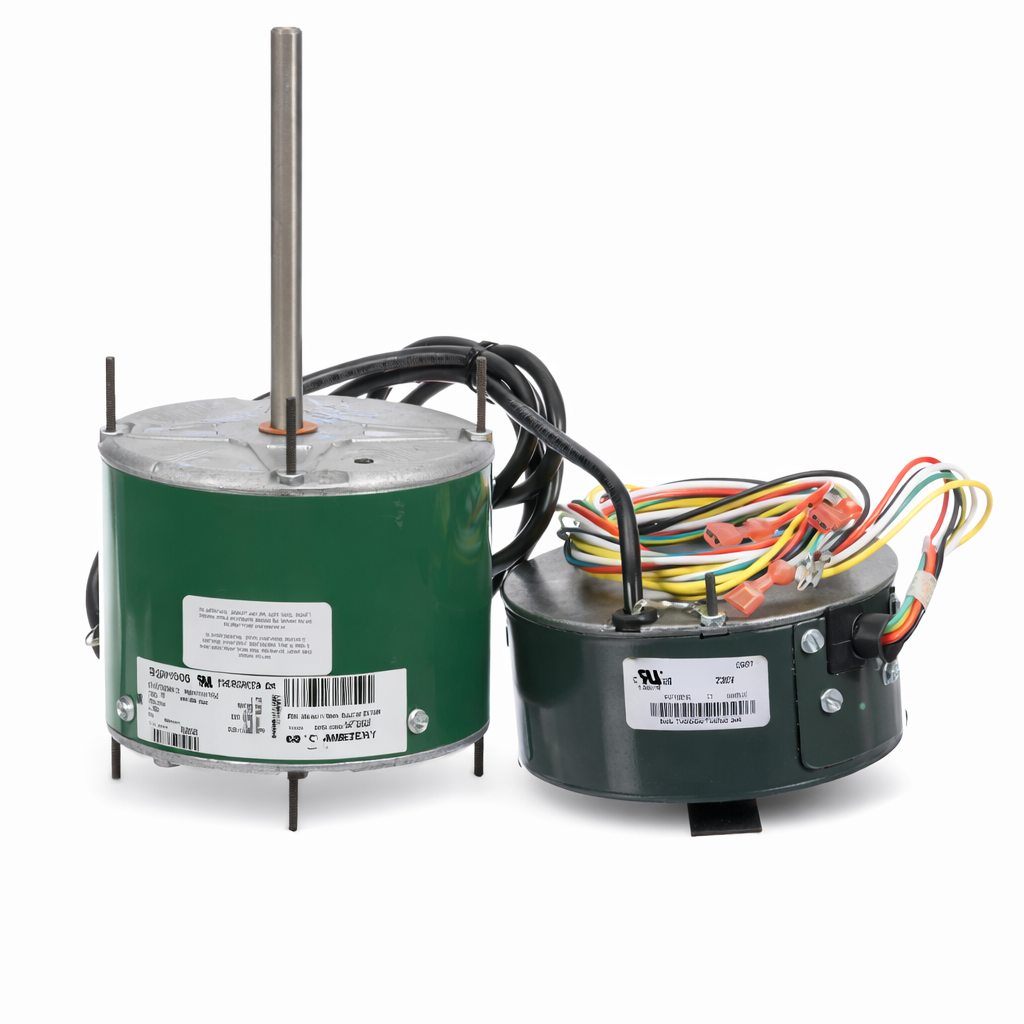

6303R, Condenser Fan Motor, 1/3-1/10Hp, 1 Ph, 60/50 Hz, 208-230 V, 850/1100 RPM, 2 Speed, 48 Frame, CLOSEDAO

6303R, Condenser Fan Motor, 1/3-1/10Hp, 1 Ph, 60/50 Hz, 208-230 V, 850/1100 RPM, 2 Speed, 48 Frame, CLOSEDAO

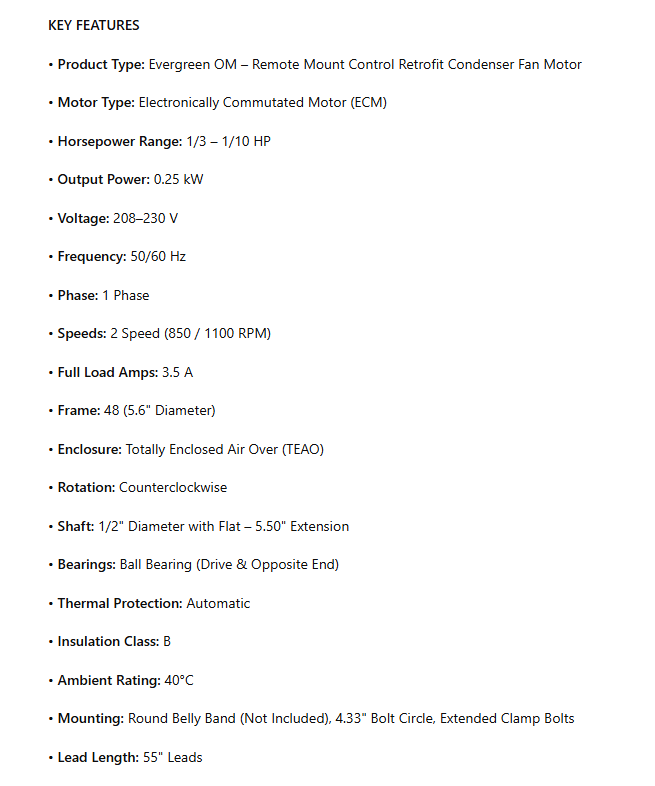

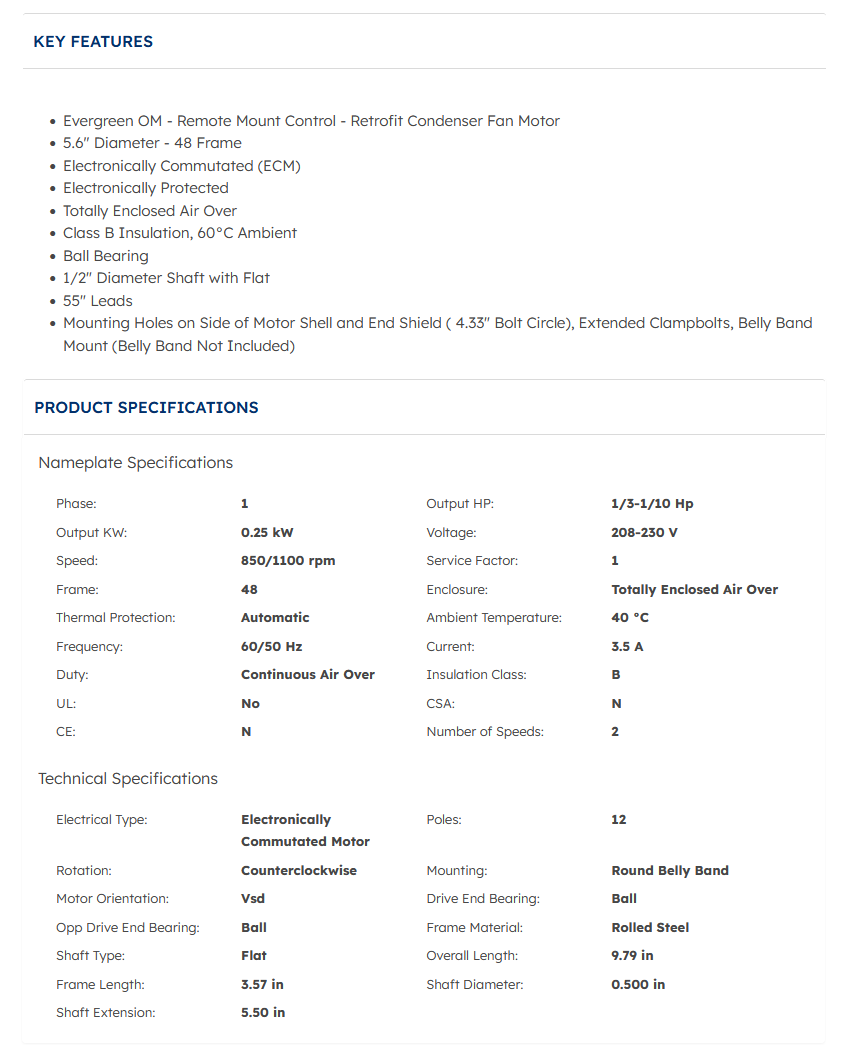

KEY FEATURES

• Product Type: Evergreen OM – Remote Mount Control Retrofit Condenser Fan Motor

• Motor Type: Electronically Commutated Motor (ECM)

• Horsepower Range: 1/3 – 1/10 HP

• Output Power: 0.25 kW

• Voltage: 208–230 V

• Frequency: 50/60 Hz

• Phase: 1 Phase

• Speeds: 2 Speed (850 / 1100 RPM)

• Full Load Amps: 3.5 A

• Frame: 48 (5.6" Diameter)

• Enclosure: Totally Enclosed Air Over (TEAO)

• Rotation: Counterclockwise

• Shaft: 1/2" Diameter with Flat – 5.50" Extension

• Bearings: Ball Bearing (Drive & Opposite End)

• Thermal Protection: Automatic

• Insulation Class: B

• Ambient Rating: 40°C

• Mounting: Round Belly Band (Not Included), 4.33" Bolt Circle, Extended Clamp Bolts

• Lead Length: 55" Leads

CROSS REFERENCE

• 1879

• 6303S
