US MOTORS  |  SKU : EMN-016447

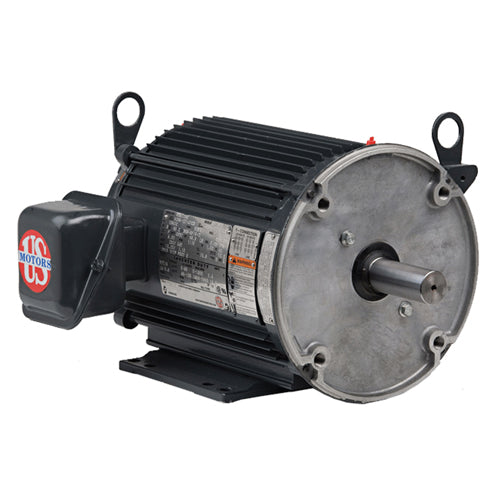

UN1T2BFC, Us Motors, 1, HP, 1800 RPM, 230/460V, 56C, FD91, 1000:1 CT, TENV

$1,027.57
shipping

Estimation des frais de livraison

Description

UN1T2BFC, model FD91 CONSTANT TORQUE 1000:1 VFD, ACCU-Torq,


CATALOG NUMBER:
UN1T2BFC
NAMEPLATE PART #:
422699-005
MODEL
FD91
FR
56C
TYPE
UTNX
ENCL
TENV
SHAFT
END BRG
6205-2Z-J/C3 - QTY 1
OPP
END BRG
6203-2Z-J/C3 - QTY 1
PH
3
MAX
AMB
40 C
  ID#
INSUL
CLASS
F
Asm.
Pos.
F1
DUTY
CONT
HP
1
RPM
1755
VOLTS
460
230

FL
AMPS
1.6
3.2

SF
AMPS

SF
1.00
DESIGN
A
CODE
N
NEMA NOM
EFFICIENCY
84.0
NOM
PF
69.3
KiloWatt
.746
GUARANTEED
EFFICIENCY
81.5
MAX
KVAR
HZ
60
HP
RPM
VOLTS

FL
AMPS

SF
AMPS

SF
DESIGN
CODE
NEMA NOM
EFFICIENCY
NOM
PF

GUARANTEED
EFFICIENCY
MAX
KVAR
HZ
HAZARDOUS LOCATION DATA (IF APPLICABLE):
DIVISION
CLASS I
GROUP I
TEMP CODE
CLASS II
GROUP II
VFD DATA (IF APPLICABLE):
VOLTS
460
230
AMPS
1.7
3.4
467333-000
TORQUE 1
3LB-FT
TORQUE 2
3-1.5LB-FT

VFD LOAD TYPE 1
CT/VEC
VFD LOAD TYPE 2
CHP/VEC
VFD HERTZ RANGE 1
0-60
VFD HERTZ RANGE 2
60-120
VFD SPEED RANGE 1
0-1800
VFD SPEED RANGE 2
1800-3600

SERVICE FACTOR
1.00
FL SLIP
45
NO. POLES
4
MAGNETIZING AMPS
1.1
VECTOR MAX RPM
3600
Encoder PPR
Radians / Seconds
9.45
Encoder Volts
TEAO DATA (IF APPLICABLE):
HP (AIR OVER)
HP (AIR OVER M/S)
RPM (AIR OVER)
RPM (AIR OVER M/S)
FPM AIR VELOCITY
FPM AIR VELOCITY M/S
FPM AIR VELOCITY SEC




ADDITIONAL NAMEPLATE DATA:
 Decal / Plate  WD=344136  Customer PN
 Notes    Non Rev Ratchet
 Max Temp Rise    OPP/Upper Oil Cap  GREASE
 Thermal (WDG)  OVER TEMP PROT 2  SHAFT/Lower Oil Cap  GREASE
 Altitude    Usable At
 Regulatory Notes     Regulatory Compliance  CC 030A
