US MOTORS | SKU :
EMN-018572

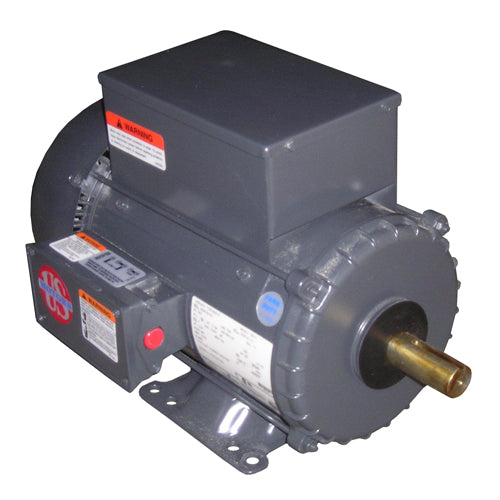

FD32CM2PH, Nidec, 1.5 Hp, 1725 Rpm, 115-208/230V, Frame: 56HC, TEFC,
Prix habituel
$393.67
Prix unitaire
/
Indisponible
FD32CM2PH, Nidec, 1.5 Hp, 1725 Rpm, 115-208/230V, Frame: 56HC, TEFC, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
FD32CM2PH, Nidec, 1.5 Hp, 1725 Rpm, 115-208/230V, Frame: 56HC, TEFC,
Prix habituel
$393.67
Prix unitaire
/
Indisponible
Description
Description
FD32CM2PH, T063BJB1911015B, Nidec

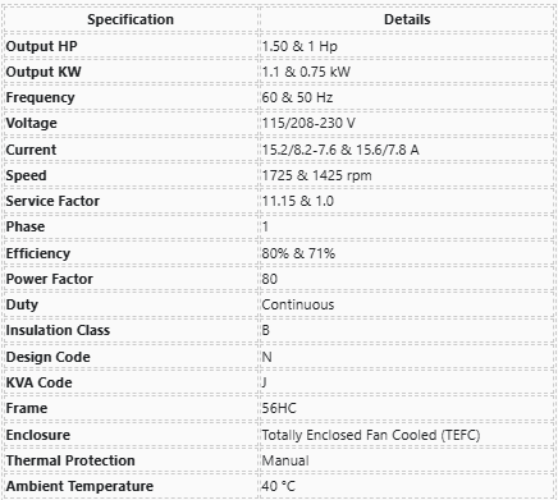

| Specification | Details |
|---|---|
| Output HP | 1.50 & 1 Hp |
| Output KW | 1.1 & 0.75 kW |
| Frequency | 60 & 50 Hz |
| Voltage | 115/208-230 V |
| Current | 15.2/8.2-7.6 & 15.6/7.8 A |
| Speed | 1725 & 1425 rpm |
| Service Factor | 11.15 & 1.0 |
| Phase | 1 |
| Efficiency | 80% & 71% |
| Power Factor | 80 |
| Duty | Continuous |
| Insulation Class | B |
| Design Code | N |
| KVA Code | J |
| Frame | 56HC |
| Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| Thermal Protection | Manual |
| Ambient Temperature | 40 °C |

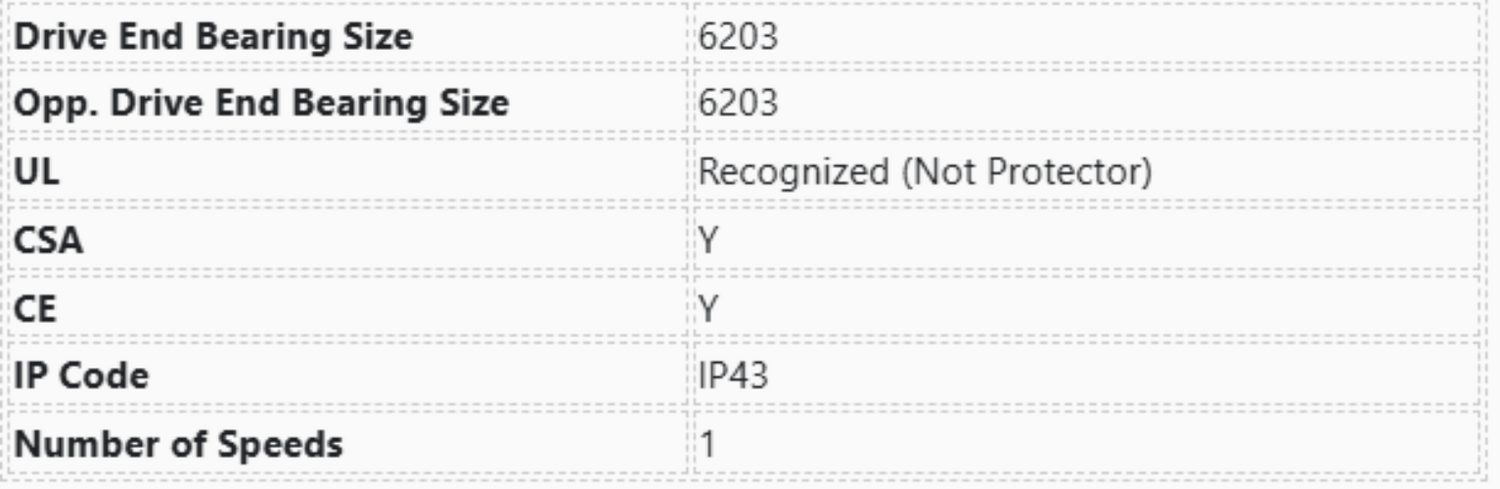

| Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Size | 6203 |
| UL | Recognized (Not Protector) |
| CSA | Y |
| CE | Y |
| IP Code | IP43 |
| Number of Speeds | 1 |
