US MOTORS | SKU :
EMN-017349

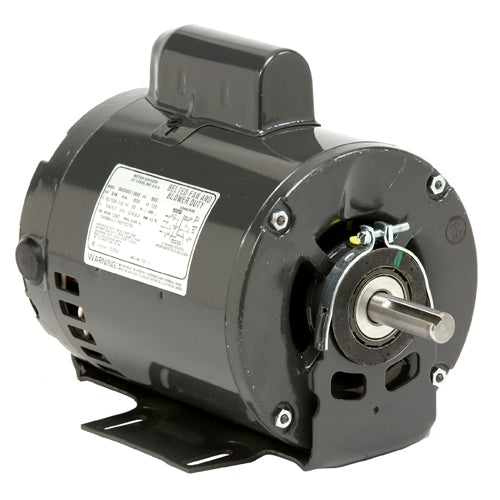

D1CPA2PH9,Us Motors,1Hp,1725 Rpm,115/208-230V,Fr:56H,T063CKP2137012B,
Prix habituel
$477.17
Prix unitaire
/
Indisponible
D1CPA2PH9,Us Motors,1Hp,1725 Rpm,115/208-230V,Fr:56H,T063CKP2137012B, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
D1CPA2PH9,Us Motors,1Hp,1725 Rpm,115/208-230V,Fr:56H,T063CKP2137012B,
Prix habituel
$477.17
Prix unitaire
/
Indisponible
Description
Description

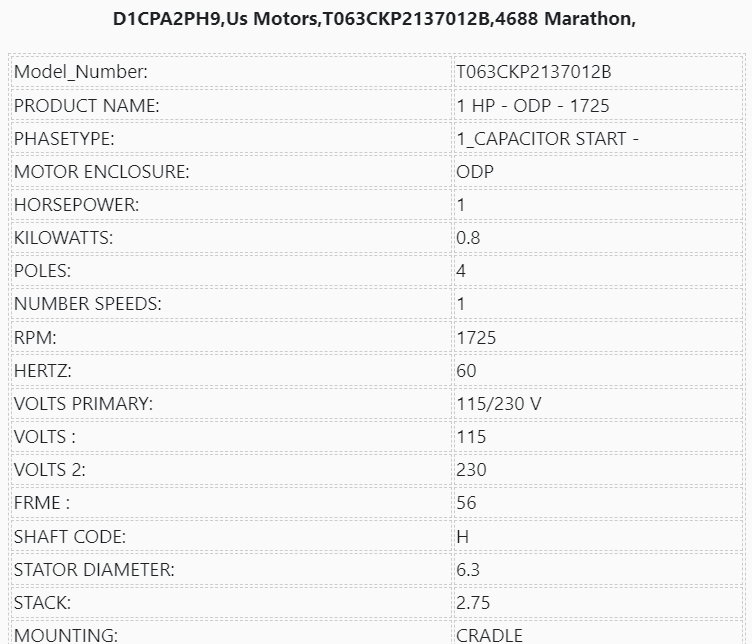

D1CPA2PH9,Us Motors,T063CKP2137012B,4688 Marathon,
| Model_Number: | T063CKP2137012B |
| PRODUCT NAME: | 1 HP - ODP - 1725 |
| PHASETYPE: | 1_CAPACITOR START - |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 1 |
| KILOWATTS: | 0.8 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115/230 V |
| VOLTS : | 115 |
| VOLTS 2: | 230 |
| FRME : | 56 |
| SHAFT CODE: | H |
| STATOR DIAMETER: | 6.3 |
| STACK: | 2.75 |
| MOUNTING: | CRADLE |
| MOTOR TYPE: | FHP |

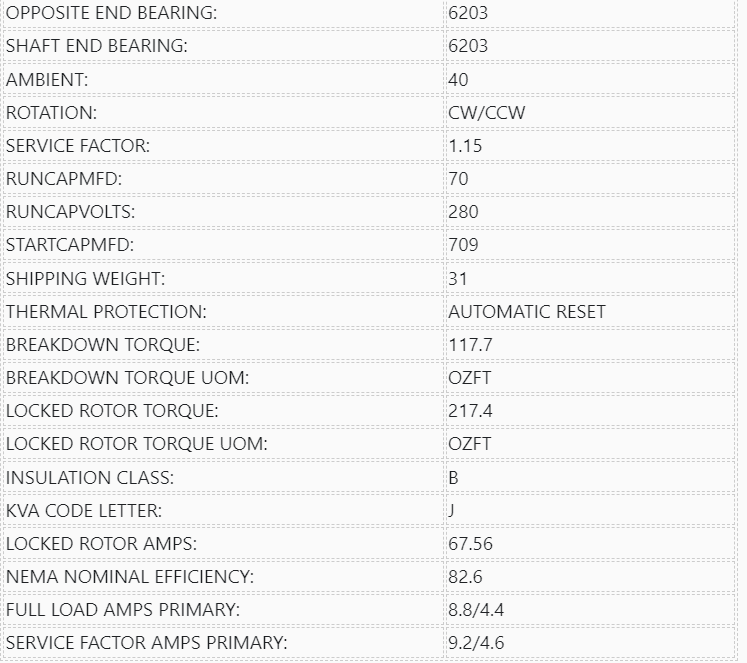

| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | CW/CCW |
| SERVICE FACTOR: | 1.15 |
| RUNCAPMFD: | 70 |
| RUNCAPVOLTS: | 280 |
| STARTCAPMFD: | 709 |
| SHIPPING WEIGHT: | 31 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 117.7 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 217.4 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | J |
| LOCKED ROTOR AMPS: | 67.56 |
| NEMA NOMINAL EFFICIENCY: | 82.6 |
| FULL LOAD AMPS PRIMARY: | 8.8/4.4 |
| SERVICE FACTOR AMPS PRIMARY: | 9.2/4.6 |
