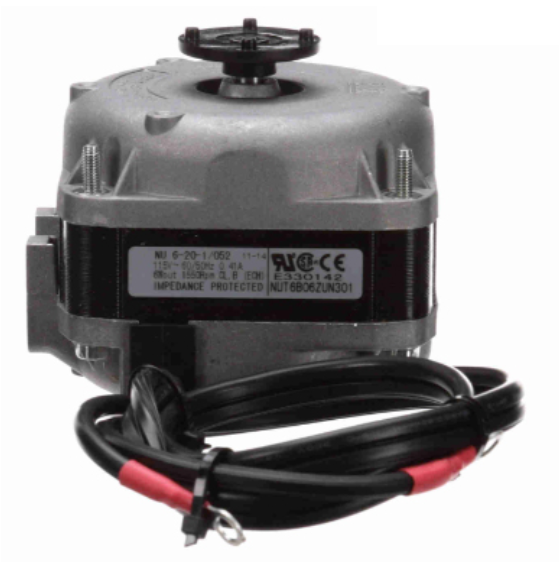

EC6W115, 6 Watt - 115 V, 1550 RPM, Elco Unit Bearing Frame, 3.3 Inch, Teao - Refrigeration

EC6W115, 6 Watt - 115 V, 1550 RPM, Elco Unit Bearing Frame, 3.3 Inch, Teao - Refrigeration

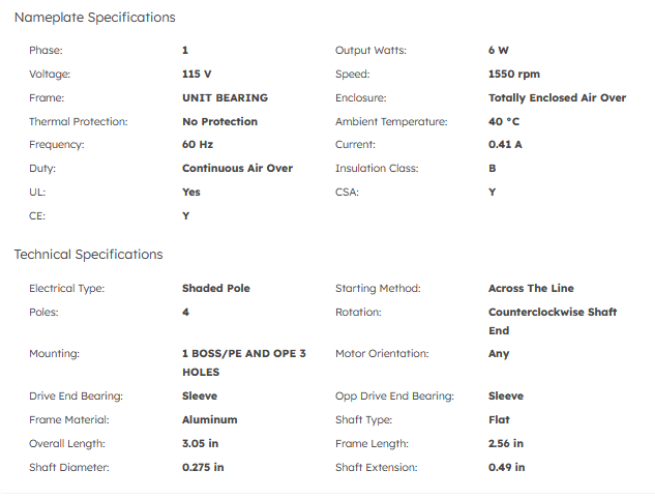

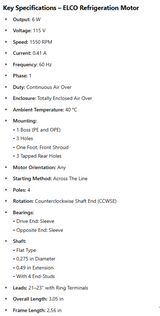

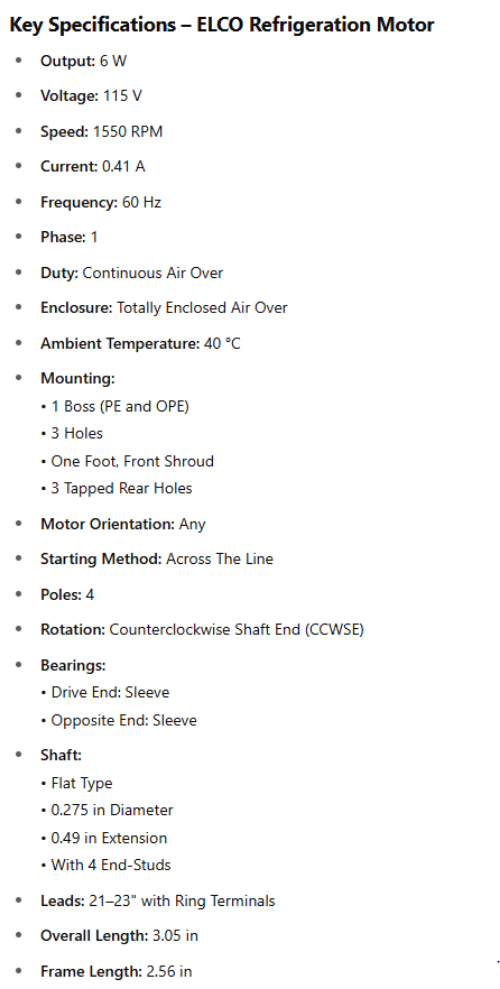

Key Specifications – ELCO Refrigeration Motor

• Output: 6 W

• Voltage: 115 V

• Speed: 1550 RPM

• Current: 0.41 A

• Frequency: 60 Hz

• Phase: 1

• Duty: Continuous Air Over

• Enclosure: Totally Enclosed Air Over

• Ambient Temperature: 40 °C

• Mounting:
  • 1 Boss (PE and OPE)
  • 3 Holes
  • One Foot, Front Shroud
  • 3 Tapped Rear Holes

• Motor Orientation: Any

• Starting Method: Across The Line

• Poles: 4

• Rotation: Counterclockwise Shaft End (CCWSE)

• Bearings:
  • Drive End: Sleeve
  • Opposite End: Sleeve

• Shaft:
  • Flat Type
  • 0.275 in Diameter
  • 0.49 in Extension
  • With 4 End-Studs

• Leads: 21–23" with Ring Terminals

• Overall Length: 3.05 in

• Frame Length: 2.56 in

Cross Reference Replace

EC‑6W115 :
810191A, 81019A, 810641A, 810642A, 81064A, 81067A, 81070A, 81076A, 81078A, 81095A, 81099A, 810A03A, 810A17A, 810A22A, 810A23A, 810A251A, 810A25A, 810E004A76, 810E006A65, 810E006A68, 810G006A12, 810G006A13, 810G006A22, 810G006A94, 810M006A04, 810M006A06, 810M006A10, 810M006A16, 810M006A17, 810M006A76, 810M006B20, 810M006B45, 810M006B55, N10201053, NET4T10ZNN901, NU6201, NU6201052, NU62011066, NUT6B06ZUN301, NUT6B06ZUN302, TFM61. NET3T06ZUN301, NET3T10ZNS301, NET4T10ZNN301 et variantes NUT6B06ZUN30x
