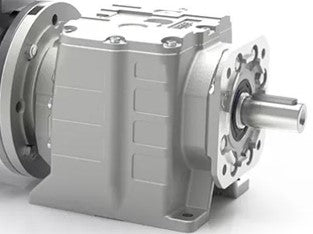

Réducer Speed RD32,Ratio 25.26:1,72 RPM ,Torque 3496 Lbs/In,FR 182/4TC

• Vent free design, factory lubricated with premium synthetic long life gear lubricant with an operating temperature range of -4°F to 131°F (-20°C to 55°C)
• One-piece cast housing complete with inner support to accommodate 2 or 3 gear stages
• Size 0 to 4 aluminum; Size 5-6 cast iron
• Unparalleled flexibility: housings accept both NEMA and IEC input flanges and Imperial and Metric output shafts
• G-coupling mount (fretting corrosion eliminated)
• Helical gears in alloy steel, case hardened, tempered and shaved
• Oversized bearings for higher shock and radial load capacity
• Significant strains caused by the effects of torque and external loads do not deflect the monolithic ribwork of the housing

MAIN COMPONENTS

• Input and output oil seals in NBR
• Housing and covers in die-cast aluminum (till size 4) and grey cast iron (sizes 5 and 6)
• Bearings with a ball or conical roller
• Input flanges in die cast aluminium
• Motor flexible coupling
• Gears in cemented and hardened alloy steel
• Synthetic oil for lifetime lubrication of the gears

For Application Sectors

• Silicone, Viton or special seals for high/low temperatures and food & beverage sector
• Anodization for chemical and ship-building/marine sectors
• Special lubricants for high/low temperatures and food & beverage sector
• Non-standard breather plugs for high/low temperatures
• Special paint finishes for chemical, ship-building/marine, and food & beverage sector
• ATEX version for potentially explosive environments

For NEMA and servo motors

• Flanges and couplings for servomotors
• Output holes in inches
• Input couplings for NEMA motors

ACCESSORIES

• Oil seals (input and output)
• Output bearings (not standard CS)
• Motor flanges (FM)
• Output flanges
• Coupling (G)
• Output hub sealing cap
