FRS 50 PC/PC 1:15, Varvel Gearbox 1:15 IEC80 B14 (19 120) AC25 VITON FKM

FRS 50 PC/PC 1:15, Varvel Gearbox 1:15 IEC80 B14 (19 120) AC25 VITON FKM

*PC  = Shaft mounting

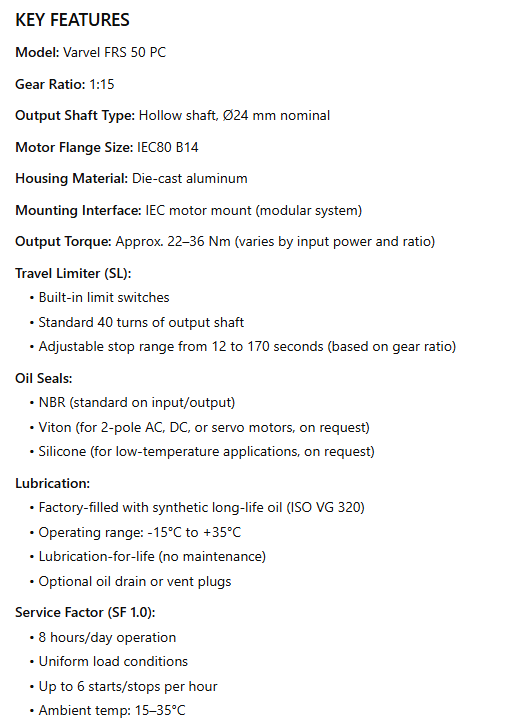

KEY FEATURES

• Model: Varvel FRS 50 PC

• Gear Ratio: 1:15

• Output Shaft Type: Hollow shaft, Ø24 mm nominal

• Motor Flange Size: IEC80 B14

• Housing Material: Die-cast aluminum

• Mounting Interface: IEC motor mount (modular system)

• Output Torque: Approx. 10–15 Nm (varies by input power and ratio)

• Travel Limiter (SL):
 - Built-in limit switches
 - Standard 40 turns of output shaft
 - Adjustable stop range from 12 to 170 seconds (based on gear ratio)

• Oil Seals:
 - NBR (standard on input/output)
 - Viton (for 2-pole AC, DC, or servo motors, on request)
 - Silicone (for low-temperature applications, on request)

• Lubrication:
 - Factory-filled with synthetic long-life oil (ISO VG 320)
 - Operating range: -15°C to +35°C
 - Lubrication-for-life (no maintenance)
 - Optional oil drain or vent plugs

• Service Factor (SF 1.0):
 - 8 hours/day operation
 - Uniform load conditions
 - Up to 6 starts/stops per hour
 - Ambient temp: 15–35°C

***** BUILT ON ORDER  18 WEEKS OR LESS *****
