E-Motor Nations  |  SKU : EMN-018272

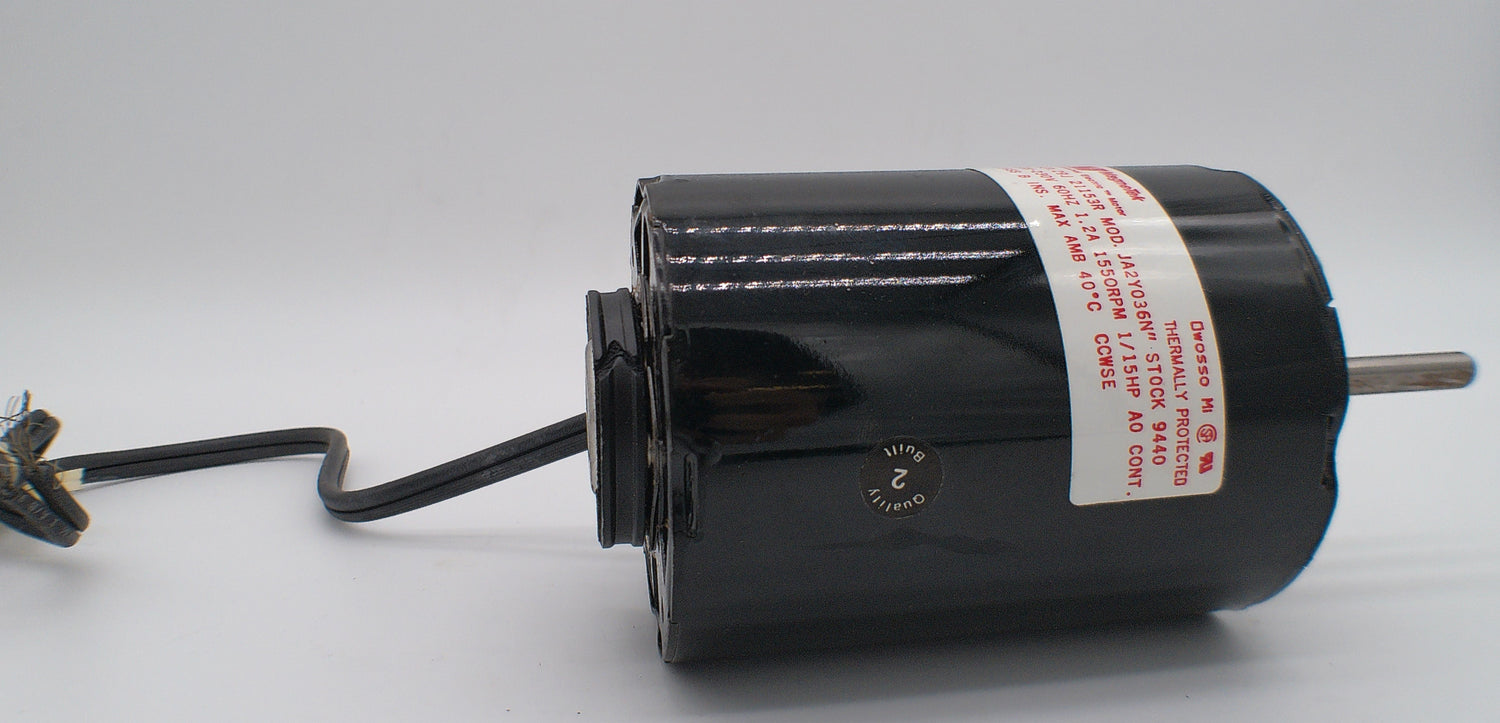

9440, Magnetek, 1/20Hp, 1550 Rpm, 208-230 Volts, JA2Y036N, Open Air Over,

$146.97
shipping

Estimation des frais de livraison

Description

9440, Magnetek,JA2Y036N,OBSOLETE REPLACED BY Fasco D471,SS1332 OMNIDRIVE

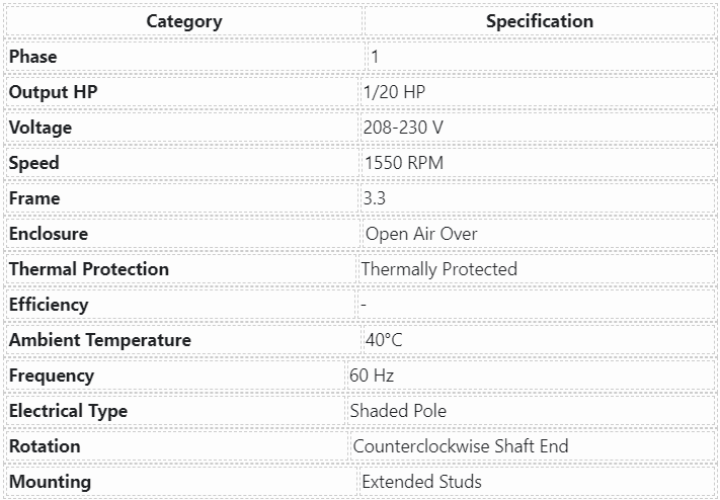

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 208-230 V
Speed: 1550 rpm Frame: 3.3
Enclosure: Open Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.10 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat & Groove Overall Length: 7.18 in
Frame Length: 2.82 in Shaft Diameter: 0.313 in
Shaft Extension: 2.5 in
  • Refrigeration Fan Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 33" Leads
  • Extended Studs Shaft End, Resilient Mounting Ring Shaft End and Opposite Shaft End
