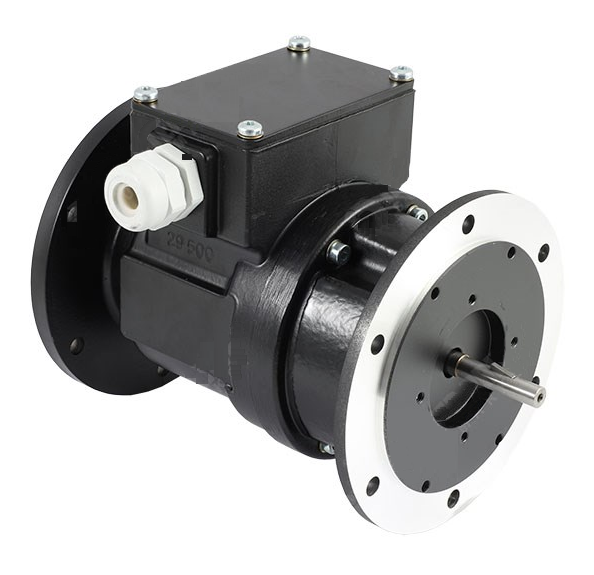

RE-0444R1B / RE0444R1B / REO444R1B-0002081 , Radio-Energie Tacho IP54, Flange, 60V, 2 x Shafts, EG Brushes

RE-0444R1B / RE0444R1B / REO444R1B-0002081 , Radio-Energie Tacho IP54, Flange, 60V, 2 x Shafts, EG Brushes

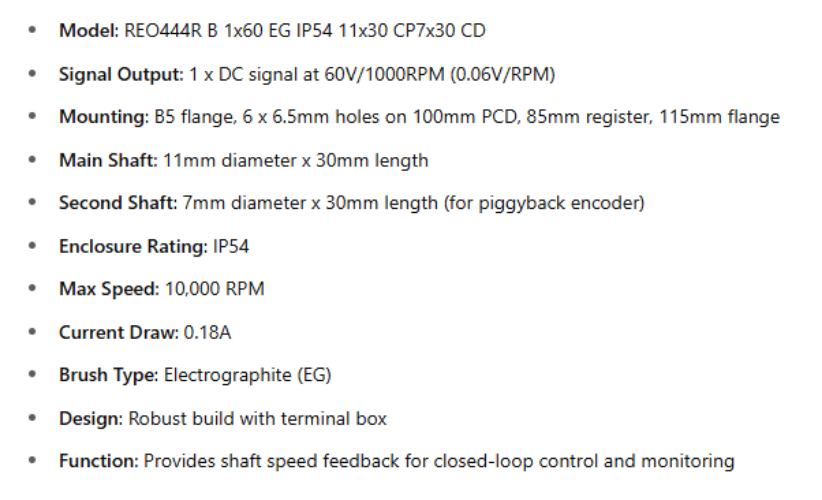

• Model: REO444R B 1x60 EG IP54 11x30 CP7x30 CD

• Signal Output: 1 x DC signal at 60V/1000RPM (0.06V/RPM)

• Mounting: B5 flange, 6 x 6.5mm holes on 100mm PCD, 85mm register, 115mm flange

• Main Shaft: 11mm diameter x 30mm length

• Second Shaft: 7mm diameter x 30mm length (for piggyback encoder)

• Enclosure Rating: IP54

• Max Speed: 10,000 RPM

• Current Draw: 0.18A

• Brush Type: Electrographite (EG)

• Design: Robust build with terminal box

• Function: Provides shaft speed feedback for closed-loop control and monitoring
