WEG  |  SKU : EMN-017185

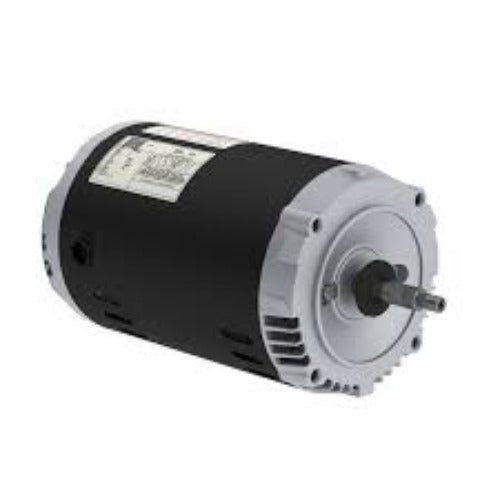

JO002502W01DOE, Weg, 2 Hp, 3510 Rpm, 575V, Fr:56J, ODP, Jet Pump,

$559.92
shipping

Estimation des frais de livraison

Description

JO002502W01DOE, Weg, Replace Marathon RVM 56T34D15540A P, Century H629,

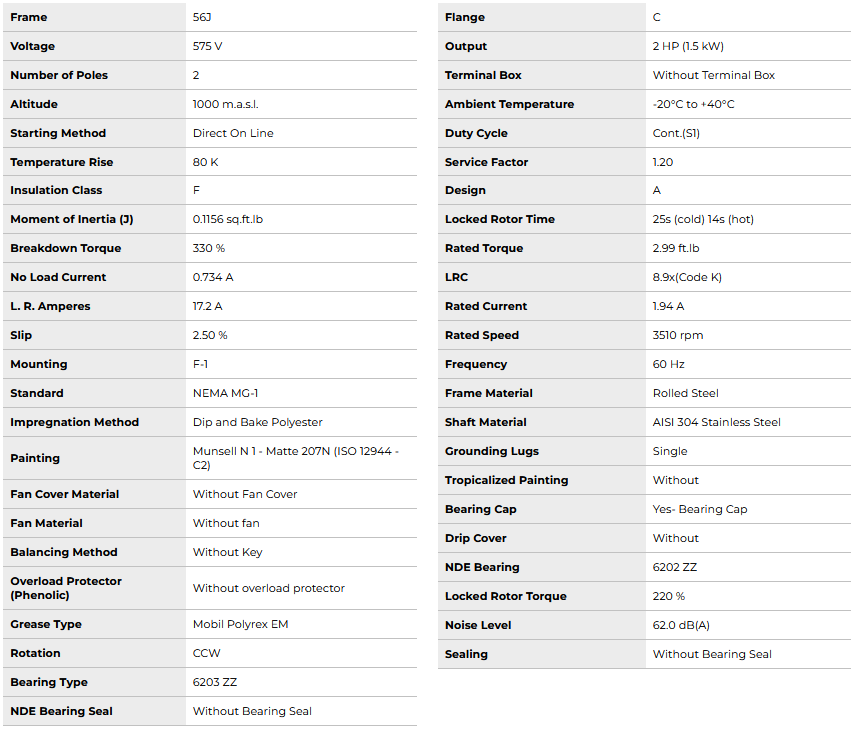

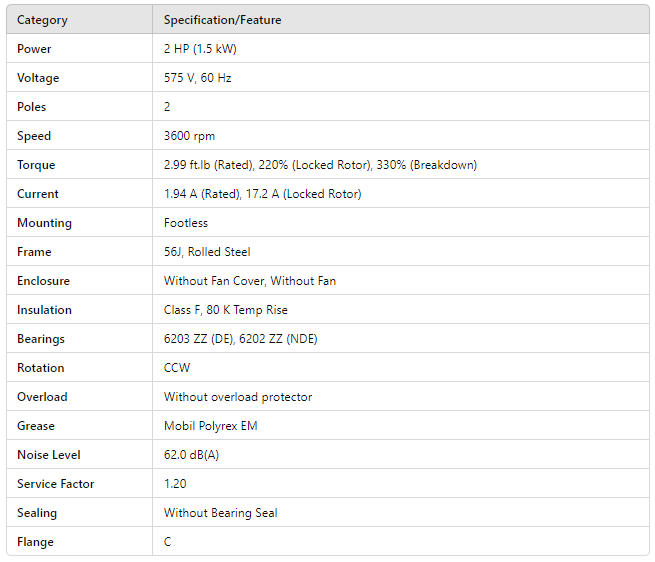

Category Specification/Feature
Power 2 HP (1.5 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 2.99 ft.lb (Rated), 220% (Locked Rotor), 330% (Breakdown)
Current 1.94 A (Rated), 17.2 A (Locked Rotor)
Mounting Footless
Frame 56J, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 ZZ (DE), 6202 ZZ (NDE)
Rotation CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 62.0 dB(A)
Service Factor 1.20
Sealing Without Bearing Seal
Flange C
