OMNIDRIVE  |  SKU : EMN-017301

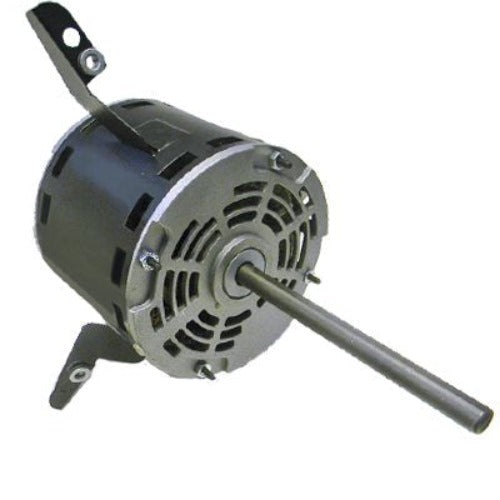

SS752, Omnidrive, 1/4Hp, 1075 Rpm, 115 Volts, Fr:48,Odp, X034,Marathon

$201.00
shipping

Estimation des frais de livraison

Description
SS752, Omnidrive, MARATHON X034, MOD: 48A11O1773, Replaces Century, Ao Smith, FM1026, GE, 3584, SS752B, SS752 OMNIDRIVE, Rotom, DD-034,

Nameplate Specifications

Phase: 1 Output HP: 0.25 Hp
Output KW: 0.19 kW Voltage: 115 V
Speed: 1075 rpm Service Factor: 1
Frame: 48Z Enclosure: Open Air Over
Thermal Protection: Automatic Efficiency: 56.1 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 3.6 A Power Factor: 95.2
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: A
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 10
Number of Speeds: 4

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Three Lug Mount
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 10.31 in
Frame Length: 3.75 in Shaft Diameter: 0.500 in
Shaft Extension: 6.06 in Assembly/Box Mounting: F1 ONLY

General Specifications

UPC: 722856038777 Weight: 14.00 LB
Packaged Length: 15.82 IN Packaged Width: 12.56 IN
Packaged Height: 9.38 IN HTC: 8501.40.4040
