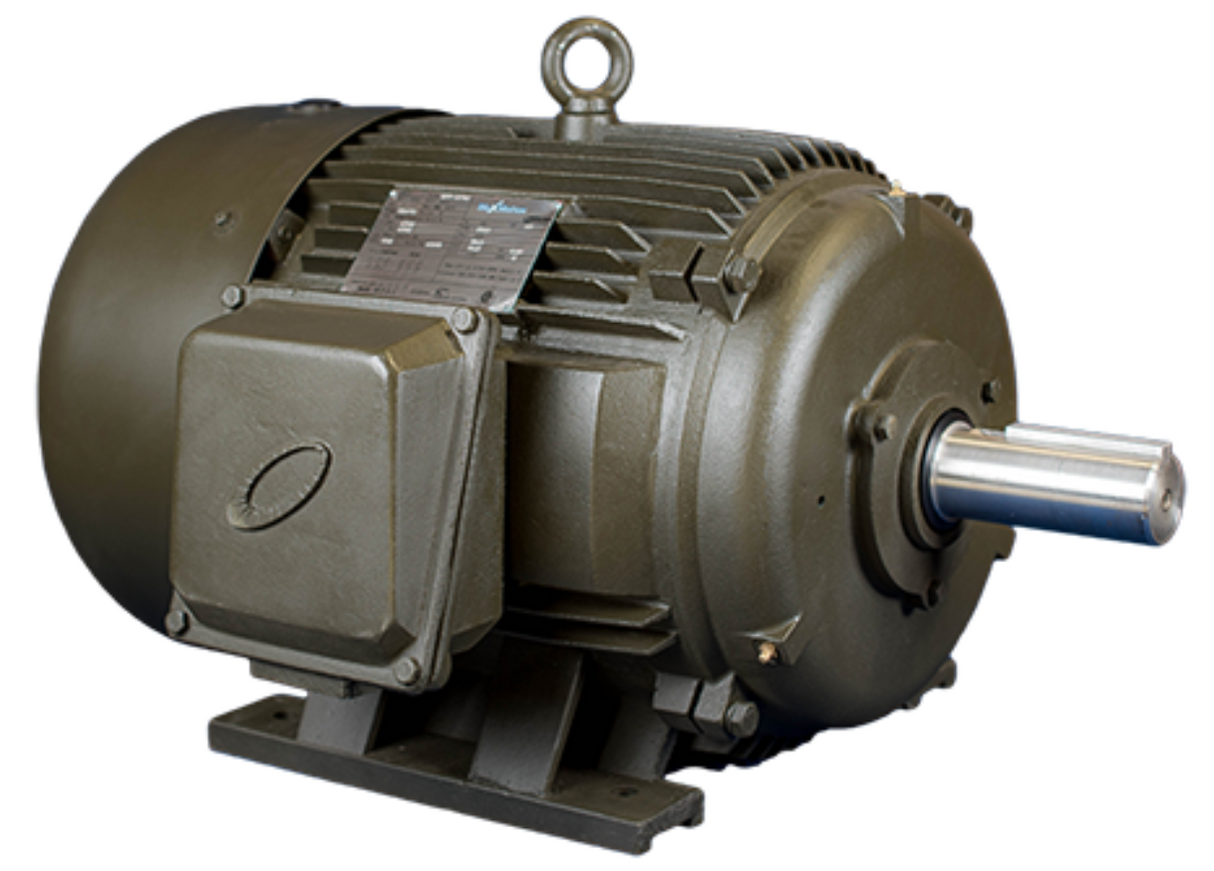

MQP-38, 15Hp, 1180RPM, 208-230V/460V, 3PH, 60-50Hz, TEFC 284T CAST IRON PREMIUM 10:1CT~20:1VT IP55 CLASS F 1.25SF

MQP-38, 15Hp, 1200RPM, 208-230V/460V, 3PH, 60-50Hz, TEFC 284T CAST IRON PREMIUM 10:1CT~20:1VT IP55 CLASS F 1.25SF

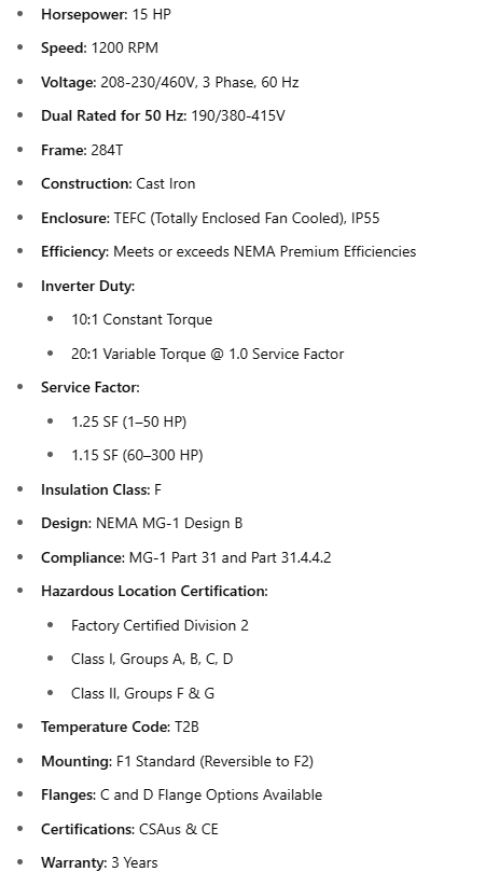

• Horsepower: 15 HP

• Speed: 1200 RPM

• Voltage: 208-230/460V, 3 Phase, 60 Hz

• Dual Rated for 50 Hz: 190/380-415V

• Frame: 284T

• Construction: Cast Iron

• Enclosure: TEFC (Totally Enclosed Fan Cooled), IP55

• Efficiency: Meets or exceeds NEMA Premium Efficiencies

• Inverter Duty:

  • 10:1 Constant Torque

  • 20:1 Variable Torque @ 1.0 Service Factor

• Service Factor:

  • 1.25 SF (1–50 HP)

  • 1.15 SF (60–300 HP)

• Insulation Class: F

• Design: NEMA MG-1 Design B

• Compliance: MG-1 Part 31 and Part 31.4.4.2

• Hazardous Location Certification:

  • Factory Certified Division 2

  • Class I, Groups A, B, C, D

  • Class II, Groups F & G

• Temperature Code: T2B

• Mounting: F1 Standard (Reversible to F2)

• Flanges: C and D Flange Options Available

• Certifications: CSAus & CE

• Warranty: 3 Years

Applications:
General purpose use on conveyors, compressors, pumps, fans, blowers and
other industrial and process machinery working in wet and dirty environments.
MaxMotion premium high efficiency motors offer even more return on your
investment when used in high cycling and long running time applications.
