MAX MOTION  |  SKU : EMN-009829

IJC200L2-2-47, 50 HP, 3600 RPM, 208-230/460V, FRAME 200L, MAXMOTION

Prix habituel $5,687.51



shipping

Estimation des frais de livraison

Description

METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, AND IE3 EFFICIENCIES

FEATURES: IJC200L2-2-47

  • IP55 weather protection

  • Class H Insulation, with B Temp Rise

  • Inverter Duty Magnet Wire,

    meets MG1 Part 31 10:1 CT, 20:1 VT

  • SKF High Temp bearings

  • 56-112 Frames come with

    Seal/lubricated Bearings,
    132 and larger are re-greasable

  • Aluminum Construction 56-160 frame, Cast Iron 180-500 frame

  • Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger

  • PTC installed on frames 132 and larger

  • IEC Design N, with NEMA B Torques
    • Terminal Blocks, Stud

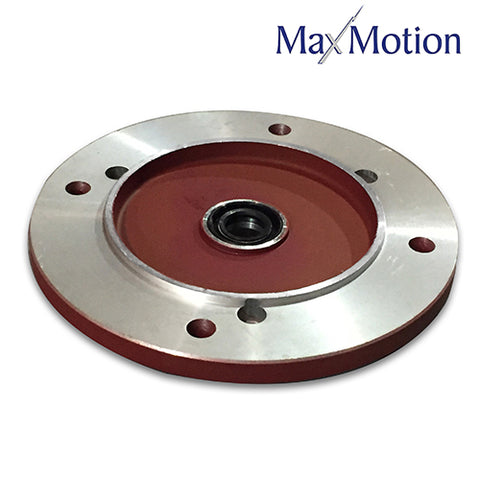

    • B14 and B5 Flanges are available

    • MAX MOTION ELECTRIC MOTOR



HP 50
CAT. # IJC200L2-2-47
RPM 3600
VOLTAGE 208-230/460
FRAME 200
TORQUE (IN.LBS.)
WGT. LBS. 584.06
“L” DIM. 746
KW 37
EFF IE3
