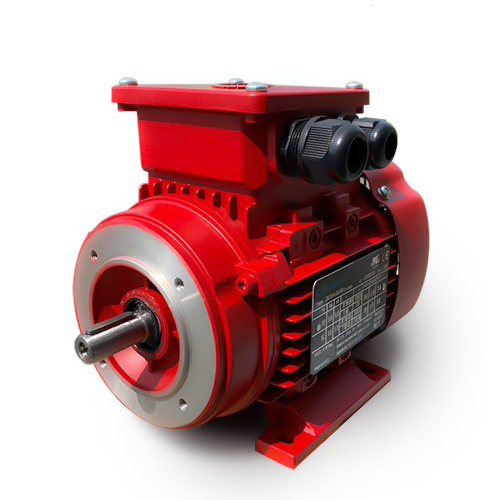

IJA2100L1-4-24-B34, Metric Motor, 3Hp, 1740 RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 100L IMB34, IP55

IJA2100L1-4-24-B34, Metric Motor, 3Hp, 1740 RPM,  208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 100L IMB34, IP55

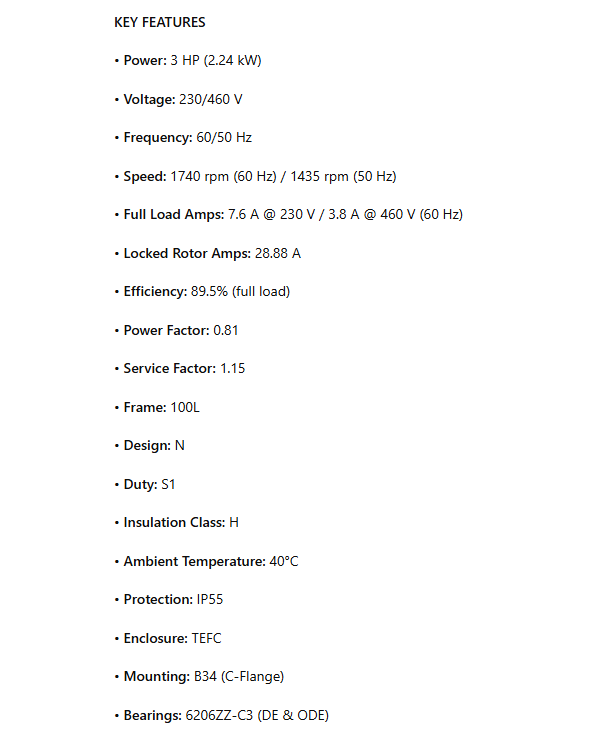

KEY FEATURES

• Power: 3 HP (2.24 kW)

• Voltage: 230/460 V

• Frequency: 60/50 Hz

• Speed: 1740 rpm (60 Hz) / 1435 rpm (50 Hz)

• Full Load Amps: 7.6 A @ 230 V / 3.8 A @ 460 V (60 Hz)

• Locked Rotor Amps: 28.88 A

• Efficiency: 89.5% (full load)

• Power Factor: 0.81

• Service Factor: 1.15

• Frame: 100L

• Design: N

• Duty: S1

• Insulation Class: H

• Ambient Temperature: 40°C

• Protection: IP55

• Enclosure: TEFC

• Mounting: B34 (C-Flange)

• Bearings: 6206ZZ-C3 (DE & ODE)
