MAX MOTION  |  SKU : EMN-009586

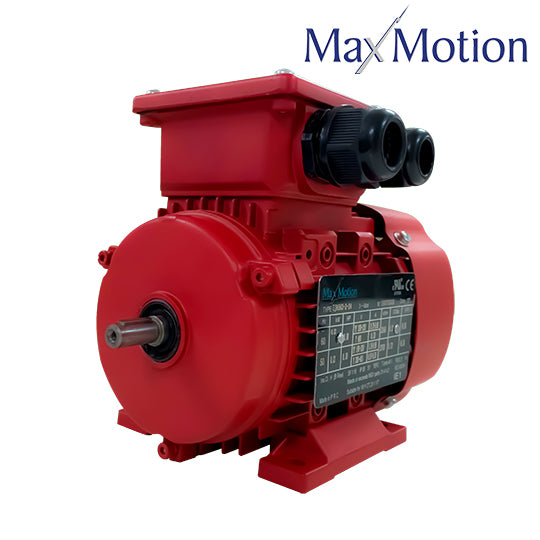

IJA112M-6-59, MaxMotion,3 Hp,1165 Rpm,575V, 3Ph, Fr:112M,Tefc,IEC, B3,

$1,577.85
shipping

Estimation des frais de livraison

Description

 IJA112M-6-59, MaxMotion, Replace Weg, ME003506W22L112, Leeson 193401.00,

Electric Motors

Frame L112M
Output 2.2 kW, 3 Hp
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 575 V
Rated current 3.63 A
L. R. Amperes 26.8 A
LRC 7.4
No load current 2.22 A
Rated torque 13.3 ft.lb
Locked rotor torque 310 %
Breakdown torque 360 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.6962 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3R(E)
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 66 lb
