MARATHON | SKU : EMN-007465

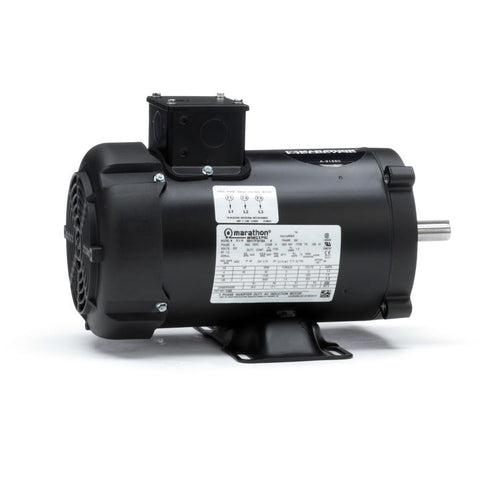

Y379, Marathon, 1 Hp, 1750 Rpm, 575V, 056H17F2020, TENV, 56C, MICROMAX

Name: Y379, Marathon, 1 Hp, 1750 Rpm, 575V, 056H17F2020, TENV, 56C, MICROMAX
Brand: MARATHON
SKU: EMN-007465
Price: 847.53 CAD
Availability: InStock

$847.53

shipping

Estimation des frais de livraison

Pays

Code postal

Description

Y379, Marathon, 056H17F2020, MICROMAX

Model :	056H17F2020	Catalog No :	Y379
Part Description :	1,1725,TEFC,56C,3/60/575	Category :	1000:1 Speed Ratio
Stock :	No

Nameplate Specifications

Output HP :	1 HP	Output KW :	0.75 kW
Frequency :	60 Hz	Voltage :	575 V
Current :	1.3 A	Speed :	1725 RPM
Service Factor :	1	Phase :	3
Efficiency :	78.5 %	Duty :	Continuous
Insulation Class :	H	Design Code :	INV
KVA Code :	K	Frame :	56C
Enclosure :	Totally Enclosed Fan Cooled	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	Y
IP Code :	43

Technical Specifications

Electrical Type :	Squirrel Cage Inverter Duty	Starting Method :	Inverter Only
Poles :	4	Rotation :	Reversible
Mounting :	Round	Motor Orientation :	Horizontal
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	NEMA 56
Overall Length :	12.44 in	Frame Length :	7.50 in
Shaft Diameter :	0.625 in	Shaft Extension :	2.06 in
Assembly/Box Mounting :	F3	UPC :	722856024367
Weight :	27.00 LB

APPLICATIONS: Designed for direct replacement of PMDC or any other variable speed application where up to a 1000:1 constant torque speed range is required. Typical uses include: machine tools, conveyors, packaging machines, batching machines, and printing equipment.

• FEATURES: • Designed to replace PMDC motors (when used with a VFD)

• Constant horsepower to twice base speed (RPM)

• Class H insulation with CR200 corona resistant magnet wire

• Removable base for C-Face footless mounting, as noted

• Continuous duty at 40ºC ambient

• “Quick Connect” terminal board, as noted

• Top mounted conduit box as found on PMDC motors

• Eliminates brush and commutator maintenance

• UL recognized, CSA certified, and CE mark

• Three year warranty

• Model 056H17F2020
