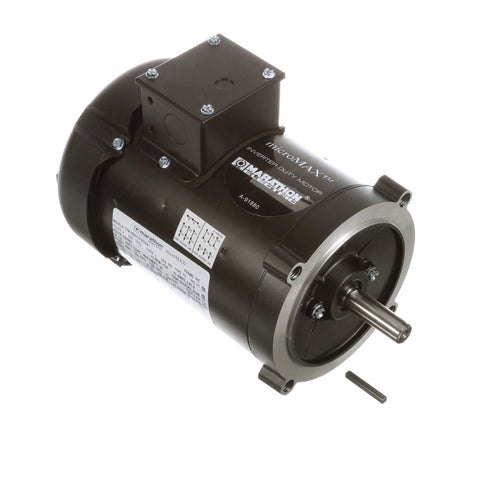

Y376, Marathon, 3/4 Hp, 1750 Rpm, 230/460V, 056H17F2018, TENV, 56C, MICROMAX

MARATHON

  • $766.69


Y376, Marathon, 056H17F2018, MICROMAX,

Model : 056H17F2018 Catalog No : Y376
Part Description : 3/4,1725,TEFC,56C,3/60/230/460 Category : 1000:1 Speed Ratio
Stock : Yes
Nameplate Specifications

Technical Specifications

​
Electrical Type : Squirrel Cage Inverter Duty Starting Method : Inverter Only
Poles : 4 Rotation : Reversible
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 11.19 in Frame Length : 6.25 in
Shaft Diameter : 0.625 in Shaft Extension : 2.06 in
Assembly/Box Mounting : F3 UPC : 722856024336

APPLICATIONS:

Designed for direct replacement of PMDC or any other variable speed

application where up to a 1000:1 constant torque speed range is required.

Typical uses include: machine tools, conveyors, packaging machines, batching

machines, and printing equipment.

• FEATURES:

• Designed to replace PMDC motors (when used with a VFD)

• Constant horsepower to twice base speed (RPM)

• Class H insulation with CR200 corona resistant magnet wire

• Removable base for C-Face footless mounting, as noted

• Continuous duty at 40ºC ambient

• “Quick Connect” terminal board, as noted

• Top mounted conduit box as found on PMDC motors

• Eliminates brush and commutator maintenance

• UL recognized, CSA certified, and CE mark

• Three year warranty

• Model 056H17T2018
