MARATHON | SKU :
EMN-017822

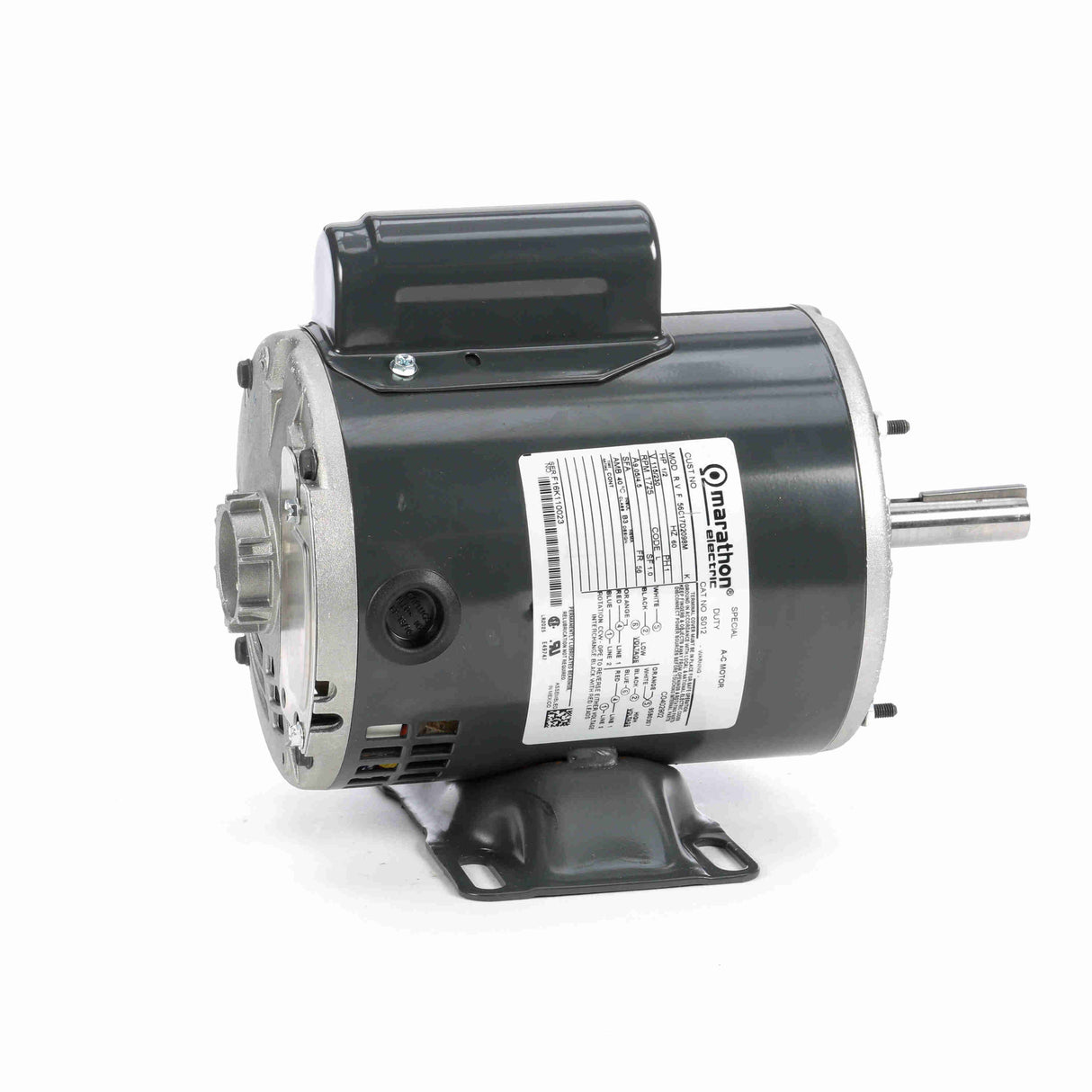

X701, 048S17D1084, Marathon, 0.13Hp, 1725 Rpm, 115 Volts, Frame:48Z, DP
Prix habituel
$230.64
Prix unitaire
/
Indisponible
X701, 048S17D1084, Marathon, 0.13Hp, 1725 Rpm, 115 Volts, Frame:48Z, DP est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
X701, 048S17D1084, Marathon, 0.13Hp, 1725 Rpm, 115 Volts, Frame:48Z...
Prix habituel
$230.64
Prix unitaire
/
Indisponible
Description
Description
X701,048S17D1084, Marathon
Nameplate Specifications
| Phase: | 1 | Output HP: | 0.13 Hp |
| Output KW: | 0.09 kW | Voltage: | 115 V |
| Speed: | 1725 rpm | Service Factor: | 1.4 |
| Frame: | 48Z | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Efficiency: | 54 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 3.0 A | Power Factor: | 55.3 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | NO DESIGN CODE | KVA Code: | U |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Fixed Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Rings |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Assembly/Box Mounting: | F1 ONLY |
General Specifications
| Weight: | 11.00 LB | Packaged Length: | 11.25 IN |
| Packaged Width: | 7.00 IN | Packaged Height: | 6.94 IN |
| HTC: | 8501.40.4040 | Country of Origin: | United States of America |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 23.20 | 0.0 | 16.50 | 0.0 | 0 | 2.24 | 84.5 | 0.13 |
| Pull-Up | 22.90 | 0.0 | 15.70 | 0.0 | 170 | 0.00 | 85.0 | 0.13 |
| Break-Down | 6.40 | 0.0 | 17.70 | 0.0 | 1,475 | 0.00 | 77.5 | 0.13 |
