MARATHON  |  SKU : EMN-017373

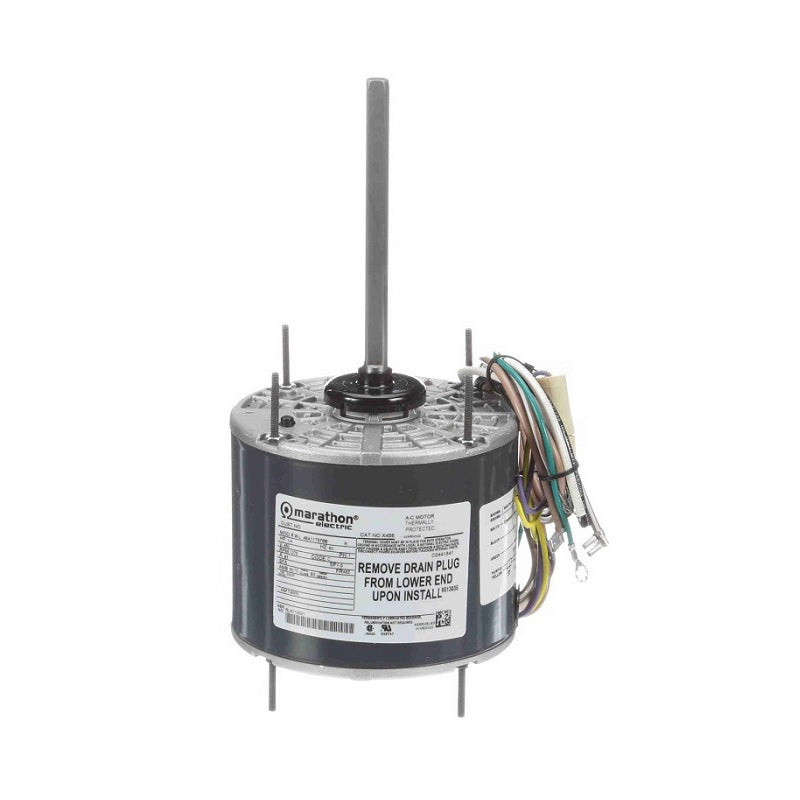

X412, Marathon, 1/4Hp, 1075Rpm, 208/230V, 048A11T569, K055MAF0217012B

$299.00
shipping

Estimation des frais de livraison

Description

X412, Marathon048A11T569,K055MAF0217012B,FSE1026, FS1026,X428, 48A11T569, 48A11TB569, 2009, 48A11T2009,YDK140-185-6D1-2,X428, 48A11T569, 48A11TB569, 2009, 48A11T2009,

Nameplate Specifications

Phase: 1 Output HP: 0.25 Hp
Output KW: 0.19 kW Voltage: 208-230 V
Speed: 1075 rpm Service Factor: 1
Frame: 48Y Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Efficiency: 68.5 %
Ambient Temperature: 60 °C Frequency: 60 Hz
Current: 1.4 A Power Factor: 92.9
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: B
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43
Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Mounting: Round - Extended Studs Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Single Special Extension
Overall Length: 10.75 in Frame Length: 3.75 in
Shaft Diameter: 0.500 in Shaft Extension: 6.06 in
Assembly/Box Mounting: F1 ONLY

General Specifications

UPC: 722856037770 Weight: 12.00 LB
Packaged Length: 13.25 IN Packaged Width: 7.00 IN
Packaged Height: 6.94 IN HTC: 8501.40.4040
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 3.72 6.79 0 0.66 0.25
Pull-Up 3.71 6.04 33 0.66 0.25
Break-Down 2.45 30.10 1,014 0.51 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 %
Current (Amps) 0.70 0.78 0.89 1.06 1.28 1.60
Rated Output (KW) 0.09 0.13 0.17 0.22 0.27 0.34
Efficiency (%) 0.0 36.5 54.3 63.9 68.5 68.1
Power Factor (%) 58.4 73.6 84.5 90.2 92.5 93.5
Speed (RPM) 1,200 1,184 1,171 1,155 1,135 1,104
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 4.58 9.03 13.70 18.60 23.90
Brand Catalog
AO SMITH FSE1026, FS1026, 0CC1026, FSE1026S
CENTURY FSE1026SV1, EM3728F, EM3728
EMERSON 1860, 2424
US MOTORS 1860PEP
MARATHON X428, 48A11T569, 48A11TB569, 2009, 48A11T2009
2U MOTORS YDK140-185-6A8
A1 F2790
AMEC YDK140-185-6D1-2
BEACON C 2CF146X
CARRIER P257-8728
ECONOMASTER EM3728
EMBRACO E221
FASCO D-742, D-909
GEM EM3328, EM3728
GENERAL ELECTRIC 3084, 3728
GLOBAL IND WBB871985
GRAINGER/DAYTON 4M105
IRP 160-1
JS S88-501
MARS 3084, 3728, 10728
MW 251825
NORDYNE 912423
PACKARD 63128
PROFIT V13728
RE MICHEL 2E563
ROTOM CF-3732, R22455
SMITH FSE1036S
TRANE M0T-6038
UNIVERSAL U-176
UPG



024-24093-000
WAGNER WG840728
