MARATHON  |  SKU : EMN-017388

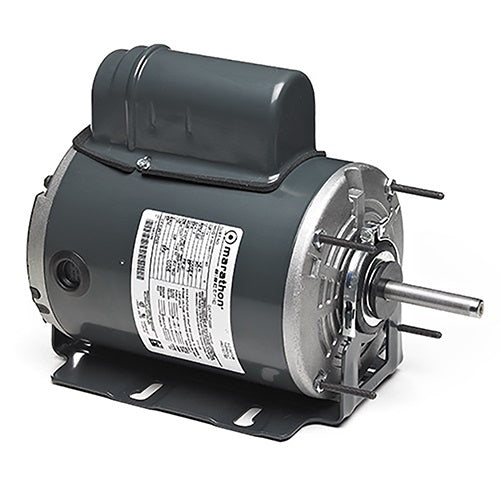

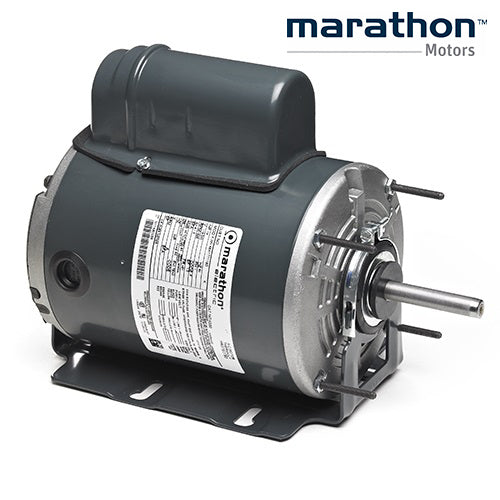

X031,Motors,1/3Hp,1625Rpm,115/230Volts,Frame:48Y,048A17T237,TEAO,1Ph,

$289.95
shipping

Estimation des frais de livraison

Description
X031, X031SB, Marathon, 048A17T237,FD13AA2P4Z9, Us Motors,100700.00 Leeson,MVS-134SB, MaxMotion,

Nameplate Specifications

Phase: 1 Output HP: 0.33 Hp
Output KW: 0.25 kW Voltage: 115/230 V
Speed: 1625 rpm Service Factor: 1
Frame: 48Y Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Efficiency: 66 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 3.8/1.9 A Power Factor: 96
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: D
Drive End Bearing Size: 6203 Opp



  • Double-shielded bearings extend the service life of the motor.
  • EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
  • Shaft flingers protect bearings from damage caused by dirt and rain.
  • Condensation drains allow the motor to expel and drain built-up moisture.
