MARATHON | SKU :
EMN-017394

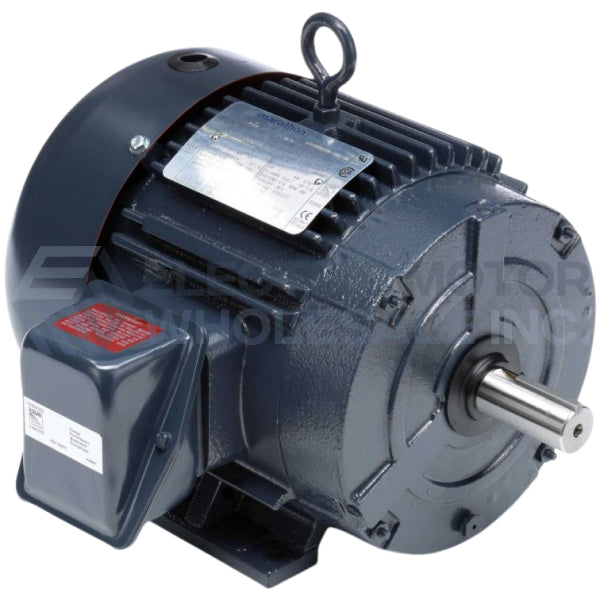

U608,Marathon,3Hp,1725 Rpm,575V, Frame:182T,182TTFR4040,3Ph,U3P2G,
Prix habituel
$724.87
Prix unitaire
/
Indisponible
U608,Marathon,3Hp,1725 Rpm,575V, Frame:182T,182TTFR4040,3Ph,U3P2G, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
U608,Marathon,3Hp,1725 Rpm,575V, Frame:182T,182TTFR4040,3Ph,U3P2G,
Prix habituel
$724.87
Prix unitaire
/
Indisponible
Description
Description
U608,Marathon,Model 182TTFR4040,Us Motors, U3P2G,AT30,EM3611T-5, ECP3661T-5,RF00345,EC00345 Westionghouse,
Nameplate Specifications
| Phase: | 3 | Output HP: | 3 Hp |
| Output KW: | 2.2 kW | Voltage: | 575 V |
| Speed: | 1760 rpm | Service Factor: | 1.15 |
| Frame: | 182T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No Protection | Efficiency: | 87.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 3.4 A | Power Factor: | 76 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | K |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 43 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Squirrel Cage Induction Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible |
| Resistance Main: | 4.65 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 14.97 in |
| Frame Length: | 5.75 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1/F2 CAPABLE |
General Specifications
| Weight: | 98.00 LB | Packaged Length: | 22.19 IN |
| Packaged Width: | 16.50 IN | Packaged Height: | 14.00 IN |
| HTC: | 8501.52.4000 | Country of Origin: | United States of America |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Full Load | 4.20 | 100.0 | 9.00 | 100.0 | 1,760 | 0.00 | 0.0 | 3.00 |
| Pull-Up | 30.00 | 714.0 | 18.50 | 206.0 | 750 | 0.00 | 0.0 | 3.00 |
| Locked-Rotor | 32.00 | 762.0 | 20.00 | 222.0 | 0 | 0.00 | 52.0 | 3.00 |
| 2/3 | 27.00 | 643.0 | 24.00 | 267.0 | 1,000 | 0.00 | 0.0 | 3.00 |
| Break-Down | 18.50 | 440.0 | 35.00 | 389.0 | 1,485 | 0.00 | 76.0 | 3.00 |
| No Load | 2.80 | 67.0 | 0.00 | 0.0 | 1,800 | 0.00 | 0.0 | 3.00 |
| 1/3 | 31.00 | 738.0 | 18.00 | 200.0 | 500 | 0.00 | 0.0 | 3.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 115 % | 125 % |
| Current (Amps) | 2.00 | 2.16 | 2.48 | 2.88 | 3.36 | 3.84 | 4.08 |
| Rated Output (KW) | 0.15 | 0.75 | 1.30 | 1.90 | 2.60 | 3.00 | 3.20 |
| Efficiency (%) | 0.0 | 77.5 | 85.0 | 87.5 | 87.5 | 87.5 | 86.5 |
| Power Factor (%) | 6.5 | 34.0 | 55.0 | 68.0 | 76.0 | 76.5 | 80.0 |
| Speed (RPM) | 1,800 | 1,790 | 1,780 | 1,770 | 1,760 | 1,755 | 1,750 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 48.0 | 55.0 | 70.0 |
| Torque (ft-lbs) | 0.00 | 2.20 | 4.40 | 6.70 | 9.00 | 10.40 | 11.20 |
KEY FEATURES
- Frame constructions are heavy gauge steel or Aluminum, as noted
- Ball bearings (except as noted)
- 1.15 Service Factor (except as noted)
- 60/50 hertz at next lower horsepower, as noted
- Will accept C-Face Kits as noted.
- UL Recognized and CSA Certified
