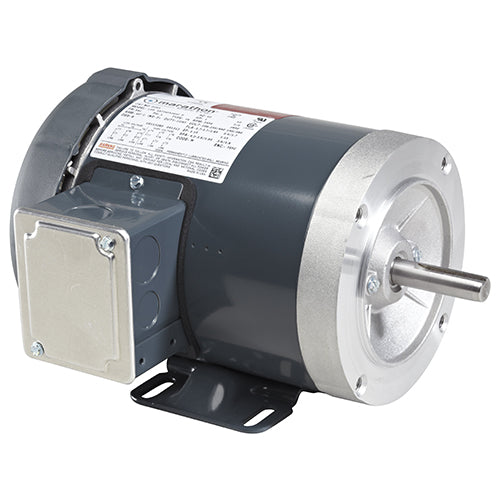

MARATHON  |  SKU : EMN-006953

Marathon, D395, 2 Hp,3600 RPM,230/460V, FR:56HC,056T34F5305,MQRP-202CW

$667.20
shipping

Estimation des frais de livraison

Description
Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 5.0/2.5 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 85.5 % Power Factor: 86
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: K
Frame: 56HC Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 43
  • D395 MARATHON
  • 2 HP
  • 3600 RPM
  • 208-230/460 VOLTS
  • FRAME 56HC ( 5/8'' WITH KEY 3/16 )
  • TEFC
  • 60 HERTZ AND 50 HZ RATED NEXT HP LOWER
  • INVERTER DUTY MAGNET WIR
  • VARIABLE TORQUE RATIO 10:1
  • CONSTANT TORQUE 5:1
  • IP55 ENCLOSURE
  • READY TO ACCEPT BRAKE KITS STEARN
  • NEMA C-FACE OUTPUT
  • BALL BEARING CONSTRUCTION
  • REVERSIBLE ROTATION
  • NEOPRENE DOUBLE LIP SEAL
  • MARATHON MOTOR
  • PREMIUM

REPLACED MQR-202CW, MQRP-202CW,  MAXMOTION
