MARATHON  |  SKU : EMN-017393

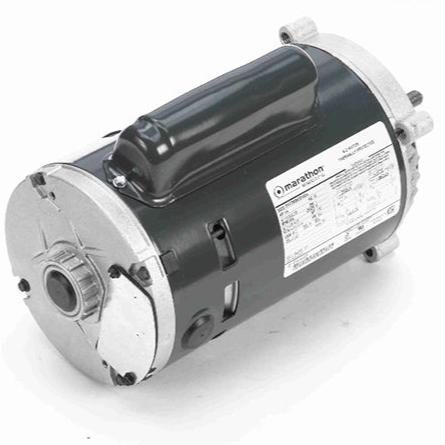

J035, Marathon, 0.75Hp, C333V1, 1725Rpm, 115/230V, Fr:56N, C055JZP4769013J,

$399.95
shipping

Estimation des frais de livraison

Description

J035, Marathon,C055JZP4769013J,EU0752, Us Motors, C333,C333V1,

Nameplate Specifications

Phase: 1 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 115/230 V
Speed: 1725 rpm Service Factor: 1
Frame: 56N Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 11.6/5.8 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: Y Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 14.46 in
Frame Length: 8.65 in Shaft Diameter: 0.625 in
Shaft Extension: 2.03 in

General Specifications

UPC: 786674074539 Weight: 37.00 LB
Packaged Length: 15.00 IN Packaged Width: 13.00 IN
Packaged Height: 10.50 IN Country of Origin: Mexico



  • UL recognized component listing and CSA certification ensures the product is safe for use.
  • Double-shielded bearings extend the service life of the motor.
  • Extended shaft with wrench flats for manual jogging of auger.
  • Manual-reset thermal protector (as noted) protects against motor overload.
