MARATHON  |  SKU : EMN-017395

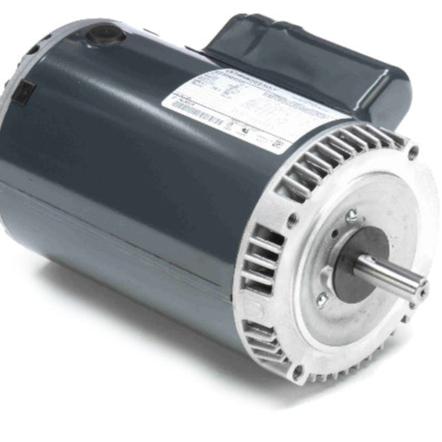

J034,Marathon,1/2Hp,3450Rpm,115/230V,Fr:56J,ODP,5KC36JN269X,C331,

$358.62
shipping

Estimation des frais de livraison

Description

J034,Marathon,5KC36JN269X,C331,C331V1,C055JZN4768013J,EU0502,

Nameplate Specifications

Phase: 1 Output HP: 0.50 Hp
Output KW: 0.37 kW Voltage: 115/230 V
Speed: 3450 rpm Service Factor: 1.6
Frame: 56J Enclosure: Drip Proof
Thermal Protection: Automatic Efficiency: 62 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 7.6,3.8 A Power Factor: 0
Duty: Continuous Insulation Class: B
KVA Code: L Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Yes CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: SM
Poles: 2 Rotation: Clockwise
Mounting: Round Motor Orientation: ANY
Drive End Bearing: LOCKED Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Overall Length: 10.82 in
Frame Length: 6.22 in Shaft Diameter: 0.630 in
Shaft Extension: 2.38 in

General Specifications

UPC: 722856032096 Weight: 15.00 LB
Packaged Length: 13.69 IN Packaged Width: 7.13 IN
Packaged Height: 7.50 IN HTC: 8501.40.4040
Country of Origin: Mexico



  • Double sealed ball bearings, mechanically locked on shaft end
  • Drip cover not included, see Accessories Section
  • Fixed CW rotation, viewed opposite shaft end
  • Automatic reset thermal protector
  • 56C = carbon steel shaft with key
  • 56J = 416 stainless steel threaded shaft with slinger
